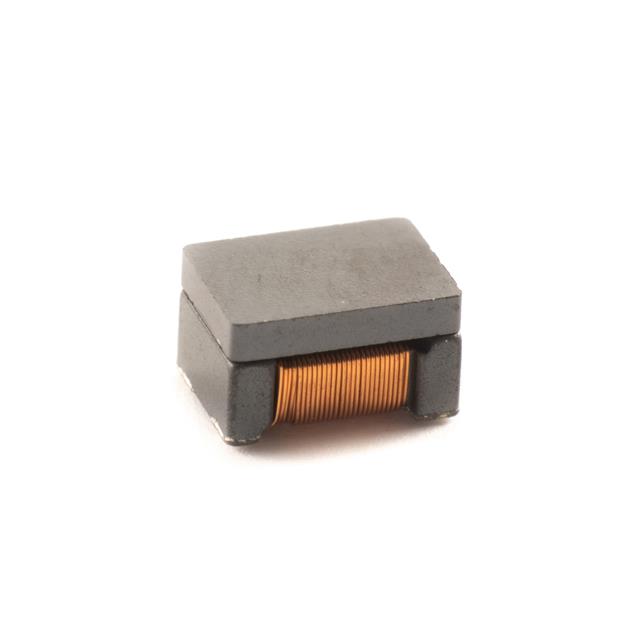

SCM30F-510-RC

$0.83

Description：CMC 51UH 200MA 2LN SMD
Series：SCM
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:60268fd68c11 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 51UH 200MA 2LN SMD
Series：SCM
Mfr：Allied Components International
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：200mA
DC Resistance (DCR) (Max)：1Ohm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.178" L x 0.126" W (4.52mm x 3.20mm)
Height (Max)：0.118" (3.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：51 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SCM30F-510-RC

Overview

The SCM30F-510-RC is a Common Mode Choke (CMC) manufactured by Allied Components International. It features an inductance of 51 µH and a current rating of 200 mA. The component is designed for surface-mount device (SMD) applications with a two-line configuration.

Feature Summary

Common mode noise suppression
Surface-mount construction

Applications

Signal line filtering
Data interface protection

Procurement Notes

Verify the specific datasheet for the SCM30F-510-RC to confirm mechanical dimensions and thermal characteristics. Ensure compatibility with your PCB footprint and soldering profile requirements before finalizing procurement decisions.

Selection Notes

Select this component when a low-current, compact common mode choke is required for SMD assembly. Verify that the 200 mA rating meets the operational current demands of the target circuit application.

Part Context

Allied Components International specializes in magnetic components including inductors and ferrite beads. This part belongs to their range of passive electronic components designed for various industrial and consumer electronics applications.
