Product Detailed Parameters
- Description：CMC 1A 2LN 800 OHM SMD
- Series：SCM30S
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：240mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height (Max)：0.118" (3.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：800 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

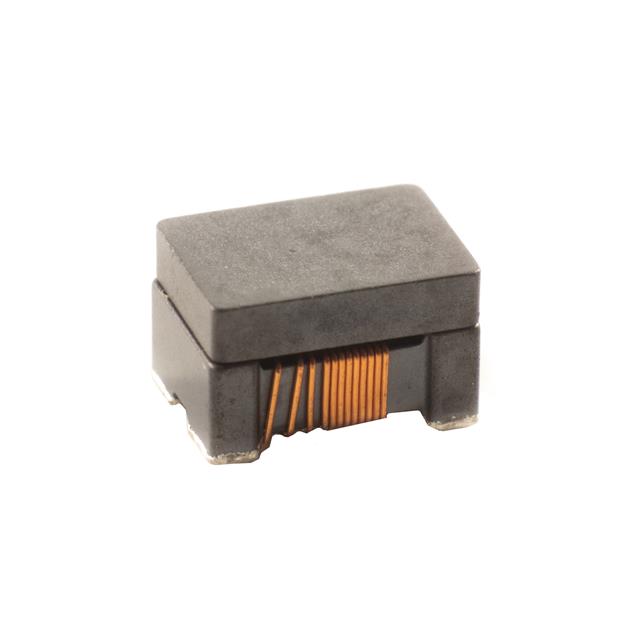

The SCM30S-801T-RC is a surface-mount common mode choke manufactured by Allied Components International. It features a horizontal package with four pads and is designed for signal line filtering. The component provides an impedance of 800 ohms at 100 MHz. It has a DC voltage rating of 50V and operates within a temperature range of -40°C to +125°C. The device is supplied in tape and reel packaging.
Feature Summary
- Designed to filter electromagnetic interference on signal lines
- Horizontal surface-mount construction with four pad configuration
- Capable of handling high-frequency noise suppression
Applications
- Signal line EMI filtering
- High-speed data handling circuits
- FPGA interface protection
Procurement Notes
Verify the specific impedance value of 800 ohms at 100 MHz against your design requirements. Confirm the horizontal package dimensions match your PCB footprint. Ensure the operating temperature range of -40°C to +125°C suits your environmental conditions. Check that the 50V DC rating is sufficient for your circuit voltage levels.
Selection Notes
Select this component when a compact, horizontal SMD common mode choke is required for signal integrity. The 800-ohm impedance offers specific attenuation characteristics for high-frequency noise. Consider the four-pad layout for soldering stability. Verify compatibility with automated assembly processes due to the tape and reel packaging format.
Part Context
This part belongs to the SCM30S series of SMD wirewound common mode filters from Allied Components International. The series includes variants with different impedance values, such as the SCM30S-601T-RC which offers 600 ohms. These components are engineered for compact electronic designs requiring effective electromagnetic interference suppression in small form factors.
Replacement Considerations
The SCM30S-601T-RC is a related variant within the same series but provides 600 ohms of impedance instead of 800 ohms. Substitution requires verifying if the lower impedance meets the specific filtering requirements of the application. Other cross-model generic replacements should be evaluated based on identical package dimensions and electrical ratings.
