Product Detailed Parameters
- Description：CMC 11.1UH 11A 2LN TH AEC-Q200
- Series：SCN-XV
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：11A
- DC Resistance (DCR) (Max)：7.78mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：-40°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.713" L x 1.358" W (43.50mm x 34.50mm)
- Height (Max)：0.886" (22.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：11.1 µH @ 100 kHz
- Qualification：-
Download product information
Overview

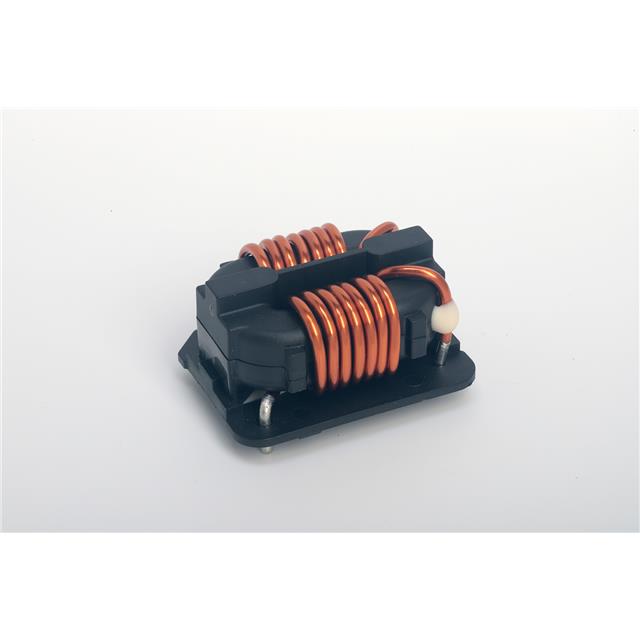

The KEMET SCN35SXV-110-1R4A015JH is a through-hole dual mode choke from the SCN-XV series. It features an inductance of 1.35mH at 100kHz and a DC current rating of 11A. The component has a maximum DC resistance of 7.95mΩ (or 7.78mΩ per some sources) and operates within a temperature range of -40°C to +125°C. It is rated for 1000V and holds AEC-Q200 certification, indicating suitability for automotive applications.
Feature Summary
- Dual mode operation combining common mode and differential mode filtering capabilities
- AEC-Q200 qualified for automotive reliability standards
- Through-hole mounting construction for robust mechanical attachment
Applications
- Automotive power supply input filtering
- EMI suppression in vehicle electronic control units
- DC-DC converter input stages
Procurement Notes
Verify the specific datasheet version as resistance values may vary slightly between 7.78mΩ and 7.95mΩ across different documentation releases. Confirm that the AEC-Q200 certification is required for your specific application environment. Ensure the through-hole footprint matches your PCB layout constraints before ordering.
Selection Notes
Select this component when high current handling up to 11A is required alongside effective EMI suppression in automotive or industrial settings. The dual-mode capability allows for simplified circuit designs by addressing both noise types. Consider the physical size and axial lead spacing if space is limited on the target board.
Part Context
This part belongs to KEMET's SCN-XV series of dual mode chokes. These components are designed to replace separate common mode and differential mode inductors, reducing component count and board space. The series is specifically engineered for high-current applications requiring robust performance under varying thermal conditions.
Replacement Considerations
Check for direct substitutes within the SCN-XV series with similar inductance and current ratings. Verify that any replacement maintains the AEC-Q200 qualification if used in automotive contexts. Ensure the new part supports the same voltage rating and operating temperature range.
