Product Detailed Parameters
- Description：CMC 9.8UH 12A 2LN TH AEC-Q200
- Series：SCN-XV
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：6.85mOhm (Typ)
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：-40°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.713" L x 1.358" W (43.50mm x 34.50mm)
- Height (Max)：1.260" (32.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：9.8 µH @ 100 kHz
- Qualification：-
Download product information
Overview

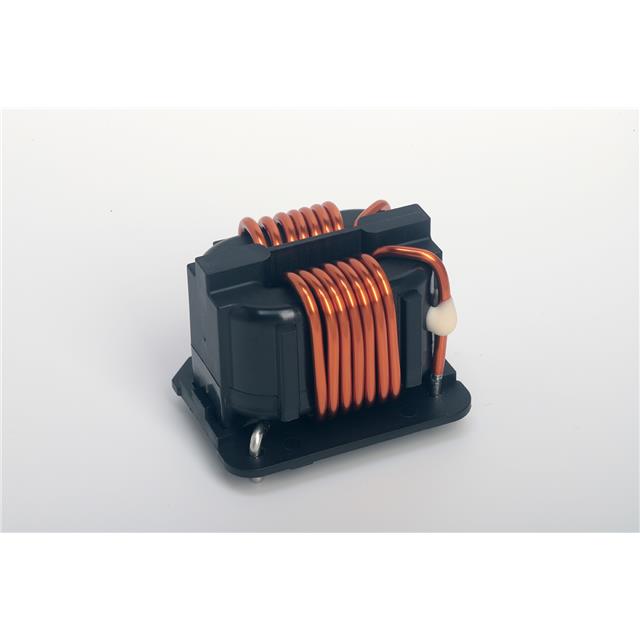

The KEMET SCN35XV-120-1R6A012JH is a dual-mode common mode choke designed for high-voltage applications. It features an inductance of 1.73 mH at 100 kHz and supports a maximum DC current of 12 A. The component has a maximum DC resistance of 6.95 mOhms and is rated for 1000 VAC. It operates within a temperature range of -40°C to +150°C and holds AEC-Q200 qualification.
Feature Summary
- Dual-mode operation capability for enhanced filtering performance
- High voltage insulation rating suitable for demanding environments
- Automotive-grade reliability with AEC-Q200 certification
Applications
- Electric vehicle power electronics
- Industrial motor drives
- High-frequency noise suppression in automotive systems
Procurement Notes
Verify the specific datasheet version for the SCN35XV-120-1R6A012JH to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with through-hole mounting processes. Cross-reference the AEC-Q200 qualification status with official KEMET documentation to validate automotive suitability for your specific application requirements.
Selection Notes
Select this component when high current handling (12 A) and high voltage isolation (1000 VAC) are required in a compact through-hole package. The dual-mode characteristic offers flexibility in circuit design compared to standard single-mode chokes. Consider the low DC resistance for efficiency in high-current paths.
Part Context
This part belongs to the KEMET SCN-XV series of dual-mode chokes. These components are engineered for robust performance in electric vehicle and industrial applications. The series emphasizes high current capacity and thermal stability, distinguishing it from standard EMI filters through its specialized core material and winding configuration.
Replacement Considerations
Check for direct substitutes within the SCN-XV family or equivalent AEC-Q200 qualified dual-mode chokes from other manufacturers. Verify that replacement parts match the 1.73 mH inductance, 12 A current rating, and 1000 VAC insulation level.
