SCPHS-180+

Overview

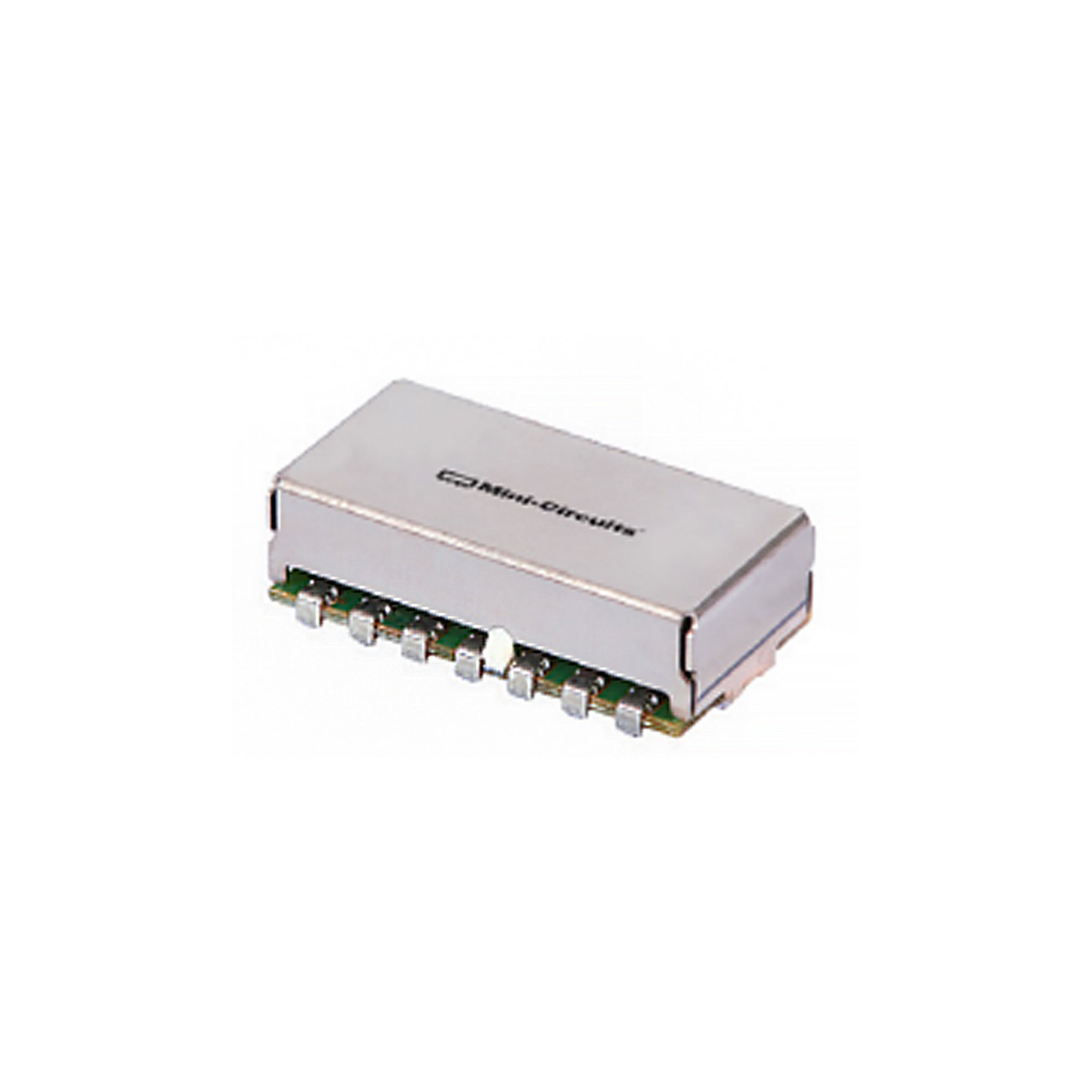

The SCPHS-180+ is a voltage-variable phase shifter manufactured by Mini-Circuits, designed for surface-mount applications. It operates within an output frequency range of 90 MHz to 180 MHz. The device provides 360 degrees of phase control and requires a single supply voltage of 10 V. It functions reliably across a temperature range from -40°C to +85°C.

Feature Summary

• Provides continuous 360-degree phase control via variable voltage input
• Engineered for miniature surface-mount integration into RF circuits
• Operates effectively within the VHF band from 90 to 180 MHz

Applications

• Cellular communication systems
• Radar signal processing
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status before procurement. Confirm that the 10V supply requirement aligns with your system design. Ensure the surface-mount package dimensions fit your PCB layout constraints. Check for any updated manufacturing notices or lifecycle status changes directly from Mini-Circuits.

Selection Notes

Select this component when precise 360-degree phase adjustment is required in the 90-180 MHz range. It is suitable for designs needing compact surface-mount solutions. Ensure the control voltage interface matches the available drive circuitry. Consider thermal management capabilities given the specified operating temperature range.

Part Context

This part belongs to the SCPHS series of voltage-variable phase shifters from Mini-Circuits. These components are widely used in RF and microwave engineering for phase alignment tasks. The series offers various frequency-specific models to suit different bandwidth requirements in wireless and radar technologies.

Replacement Considerations

Consult official Mini-Circuits documentation for verified substitute part numbers. Cross-reference frequency ranges and phase control specifications carefully. Ensure pinout compatibility if direct replacement is intended.
