SCR-150-1R4A006J-P

Overview

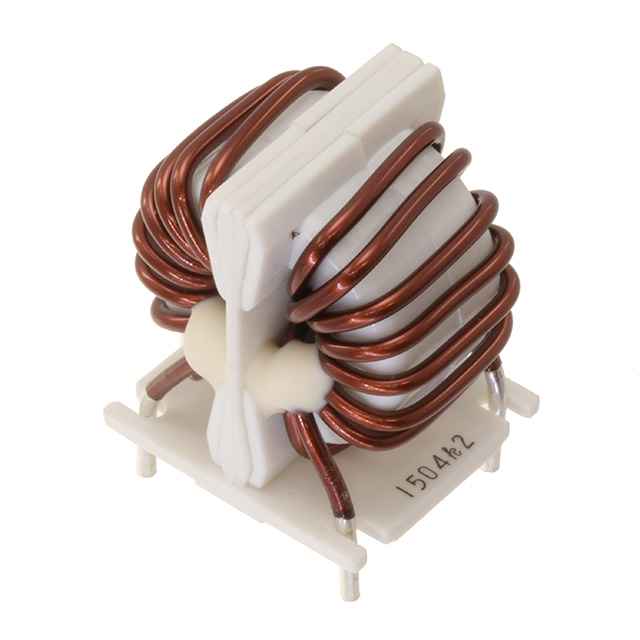

The KEMET SCR-150-1R4A006J-P is a through-hole common mode filter utilizing proprietary S15H ferrite material. It features an inductance of 600 µH and a DC current rating of 15 A. The maximum DC resistance is 5300 µΩ, with an operating temperature range from -40°C to high temperatures supported by the material properties. The component is UL 94 V-0 flame retardant rated.

Feature Summary

• Utilizes proprietary S15H ferrite material for high permeability and impedance
• Space-saving design enabled by high permeability characteristics
• Base and housing are UL 94 V-0 flame retardant rated

Applications

• AC line filtering
• Common mode noise suppression
• Power supply input stages

Procurement Notes

Verify the specific suffix J-P against official KEMET documentation to confirm lead time and compliance status. Ensure the 15A current rating and 600µH inductance match the circuit requirements. Confirm UL 94 V-0 rating validity for the intended application environment.

Selection Notes

Select this component for applications requiring high common mode rejection with significant current handling capabilities. The S15H material offers high impedance in a compact form factor. Verify that the through-hole mounting style fits the PCB layout constraints.

Part Context

This part belongs to the KEMET SCR series of AC line filters. These components are designed for common mode interference reduction in power electronics. The series utilizes specialized ferrite materials to achieve high performance in noise suppression applications.

Replacement Considerations

Check for UAL151R4A006JP as an alternative designation. Verify electrical parameters such as inductance and current rating before substituting.
