Product Detailed Parameters
- Description：CMC 100UH 22A 2LN TH AEC-Q200
- Series：SCR-XV
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：22A
- DC Resistance (DCR) (Max)：1.43mOhm
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：-40°C ~ 120°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" L x 0.744" W (30.00mm x 18.90mm)
- Height (Max)：1.122" (28.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：100 µH @ 100 kHz
- Qualification：-
Download product information
Overview

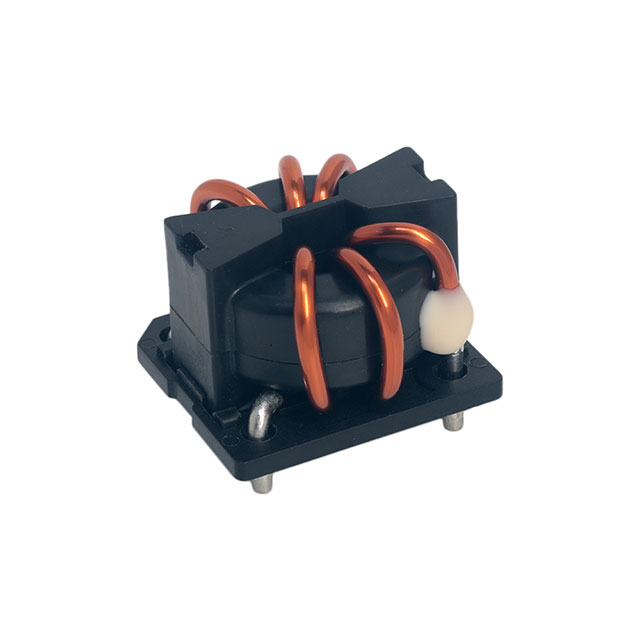

The KEMET SCR19XV-220-1R6A004JH is a common mode choke filter designed for high-current automotive applications. It features an inductance of 100 µH and supports a maximum DC current of 22 A. The component has a maximum DC resistance of 1.38 mΩ and withstands up to 1000 V AC/DC. Certified under AEC-Q200, it operates within a temperature range of -40°C to +150°C.
Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- High current handling capability of 22 A
- Low DC resistance for efficient power transmission
- Robust insulation rated for 1000 V AC/DC
Applications
- Automotive power supply filtering
- Inverter input/output stages
- Motor drive circuits
- On-board charger systems
Procurement Notes
Verify the specific suffix JH against official KEMET documentation to confirm exact electrical tolerances and packaging details. Ensure the procurement channel provides valid traceability for AEC-Q200 certified components. Cross-reference the manufacturer part number with the latest datasheet revision to avoid discrepancies in lead times or specifications.
Selection Notes
Select this component when high current capacity and low impedance are critical for noise suppression in automotive environments. The wide operating temperature range ensures stability under harsh thermal conditions. Compare the 100 µH inductance value against circuit requirements to ensure effective common mode noise attenuation without saturating at the target current levels.
Part Context
This part belongs to the SCF19XV series of common mode chokes from KEMET. The series is engineered for demanding automotive electronics, offering compact solutions for EMI suppression. The SCR variant specifically denotes the through-hole construction suitable for robust PCB mounting in high-power modules.
Replacement Considerations
The SCR19XV-220-1R6A004JV is a verified substitute with identical core specifications. Verify that the JV suffix does not introduce differences in packaging or tolerance that affect the assembly process.
