SCR19XV-220-1R6A004JV

$7.00

Description：CMC 100UH 22A 2LN TH AEC-Q200
Series：SCR-XV
Mfr：KEMET
Package：Tray

SKU:80455f1eca05 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100UH 22A 2LN TH AEC-Q200
Series：SCR-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：22A
DC Resistance (DCR) (Max)：1.38mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 120°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.181" L x 0.744" W (30.00mm x 18.90mm)
Height (Max)：1.122" (28.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：100 µH @ 100 kHz
Qualification：-

Download product information

SCR19XV-220-1R6A004JV

Overview

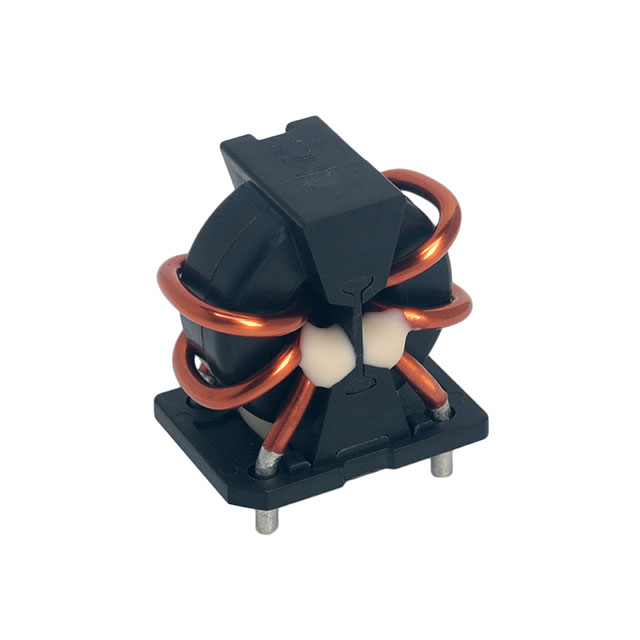

The KEMET SCR19XV-220-1R6A004JV is a through-hole common mode choke designed for high-current applications. It features an inductance of 100 µH and supports a maximum DC current of 22 A. The component exhibits a maximum DC resistance of 1.38 mΩ. It operates within a temperature range of -40°C to +120°C and holds AEC-Q200 qualification for automotive reliability.

Feature Summary

Provides effective common mode noise suppression in two-line circuits
Engineered for high saturation current handling capabilities
Qualified for automotive electronic system environments

Applications

Automotive power supply filtering
DC-DC converter input/output stages
Industrial motor drive noise reduction

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters, as variations exist within the SCF and SCR series. Ensure the selected component matches the required inductance and current ratings for the target application circuit design.

Selection Notes

Select this component when high current capacity and low DC resistance are critical for efficiency. The AEC-Q200 certification makes it suitable for automotive systems requiring robust electromagnetic interference mitigation in power lines.

Part Context

This component belongs to the KEMET SC-XV series of common mode chokes. These devices are engineered for high-performance filtering in demanding environments, offering reliable noise suppression for sensitive electronics in automotive and industrial sectors.
