SCR22-060-1R0A075J

Overview

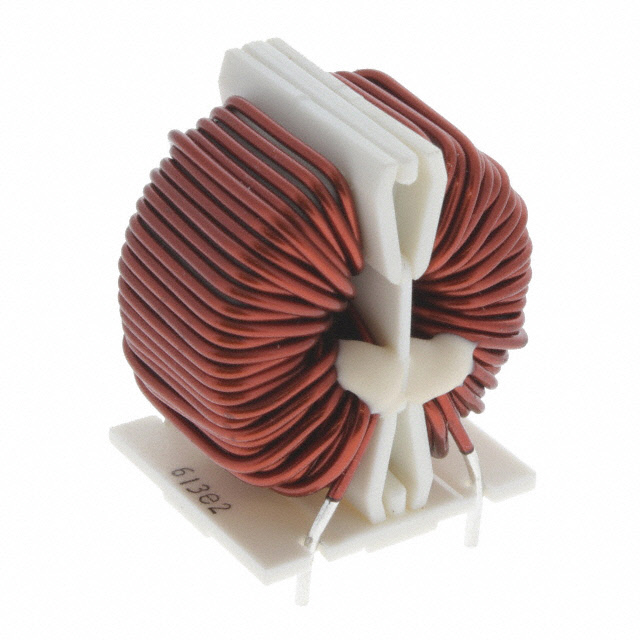

The KEMET SCR22-060-1R0A075J is a through-hole common mode choke from the SCR22 series. It features a nominal inductance of 7.5 mH and a rated DC current of 6 A. The component has a maximum DC resistance of 0.042 ohms and operates within a temperature range of -40°C to 120°C.

Feature Summary

• Provides common mode noise suppression for power lines
• Designed for through-hole mounting applications
• Supports high current ratings up to 6 A

Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Industrial equipment power stages

Procurement Notes

Verify the part number against official KEMET documentation to confirm specifications. Ensure the required inductance, current rating, and temperature range match the design requirements. Check for RoHS compliance status if applicable to the project standards.

Selection Notes

Select this component when a 7.5 mH common mode choke with a 6 A current rating is needed. Consider the physical size and through-hole mounting style. Evaluate the DC resistance impact on circuit efficiency. Confirm compatibility with the operating temperature environment.

Part Context

This component belongs to the SCR22 series of common mode chokes manufactured by KEMET. These components are designed for general-purpose EMI filtering in power electronics applications requiring robust performance and reliable noise suppression capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available.
