SCR25XV-130-1R5A012JH

Overview

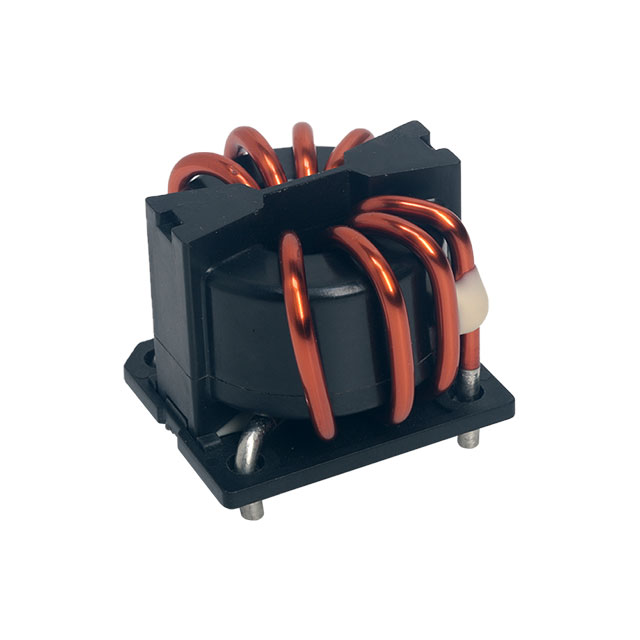

The KEMET SCR25XV-130-1R5A012JH is a through-hole common mode choke from the SCR-XV series, designed for AC line filtering applications. It features an inductance of 1.77 mH at 100 kHz and supports a DC current rating of 13 A. The component exhibits a maximum DC resistance of 6.43 mOhm and withstands up to 1000 VAC isolation voltage. It operates within a temperature range of -40°C to +120°C and holds AEC-Q200 qualification.

Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High current handling capability with low DC resistance
• Robust 1000 VAC isolation voltage for safety compliance

Applications

• Automotive AC line filtering
• Electromagnetic interference suppression in power circuits
• Common mode noise reduction in industrial equipment

Procurement Notes

Verify the complete part number including suffixes against official KEMET documentation to ensure correct specifications. Confirm package type and mounting style match design requirements. Check for any specific environmental certifications required by the target application before finalizing procurement decisions.

Selection Notes

Select this component when high current capacity and automotive-grade reliability are required for common mode noise suppression. Ensure the PCB layout accommodates the through-hole footprint dimensions. Verify that the operating temperature range meets the system's thermal constraints.

Part Context

This component belongs to the KEMET SCR-XV series of AC line filters. These chokes are engineered for robust performance in demanding environments, offering high inductance values suitable for effective noise attenuation in power supply lines.

Replacement Considerations

The datasheet references SCR25XV-130-1R5A012JV as a related variant. Verify electrical parameters and physical dimensions before substituting.
