Product Detailed Parameters
- Description：CMC 1.77MH 13A 2LN TH AEC-Q200
- Series：SCR-XV
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：13A
- DC Resistance (DCR) (Max)：6.33mOhm
- Voltage Rating - DC：1000V (1kV)
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：-40°C ~ 120°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.516" L x 1.043" W (38.50mm x 26.50mm)
- Height (Max)：1.378" (35.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1.77 mH @ 100 kHz
- Qualification：-
Download product information
Overview

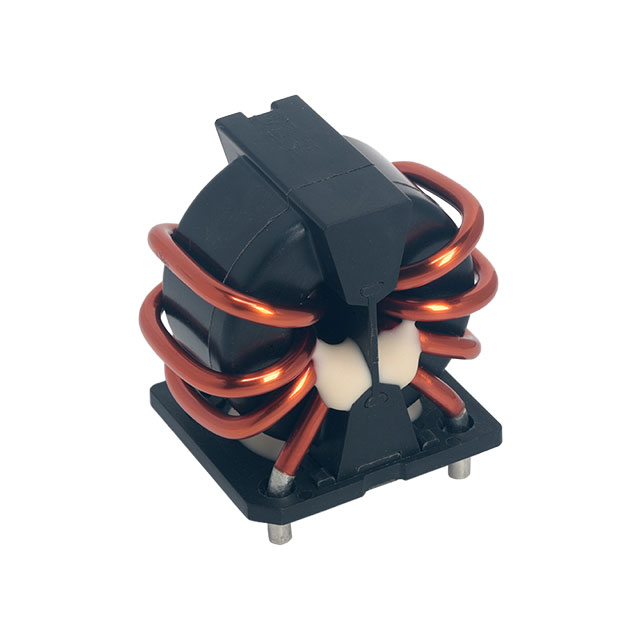

The KEMET SCR25XV-130-1R5A012JV is a two-line common mode choke from the SCR-XV series, designed for AC line filtering applications. It features an inductance of 1.77 mH at 100 kHz and supports a maximum DC current of 13 A. The component has a typical DC resistance of 6.33 mOhms and a voltage rating of 1000 VAC/DC. It meets AEC-Q200 automotive qualification standards and utilizes a through-hole vertical mounting configuration.
Feature Summary
- Provides effective suppression of electromagnetic interference for power line filtering
- Meets AEC-Q200 automotive qualification standards for reliability
- Supports high voltage ratings suitable for AC line applications
Applications
- AC line filtering
- Power line filtering applications
- Automotive electronic systems requiring AEC-Q200 compliance
Procurement Notes
Verify the complete part number including suffixes to ensure correct specifications. Confirm that the required inductance, current rating, and voltage withstand capabilities match the specific circuit design requirements before procurement.
Selection Notes
Select this component when designing circuits requiring robust common mode noise suppression with high current handling capabilities. Ensure the physical footprint and through-hole mounting style are compatible with the target PCB layout and assembly processes.
Part Context
This component belongs to the KEMET SCR-XV series of common mode chokes. These components are engineered for AC line filter applications, offering reliable performance in environments demanding high insulation resistance and stable inductance characteristics under load.
