SCR29XV-120-1R6A017JV

Overview

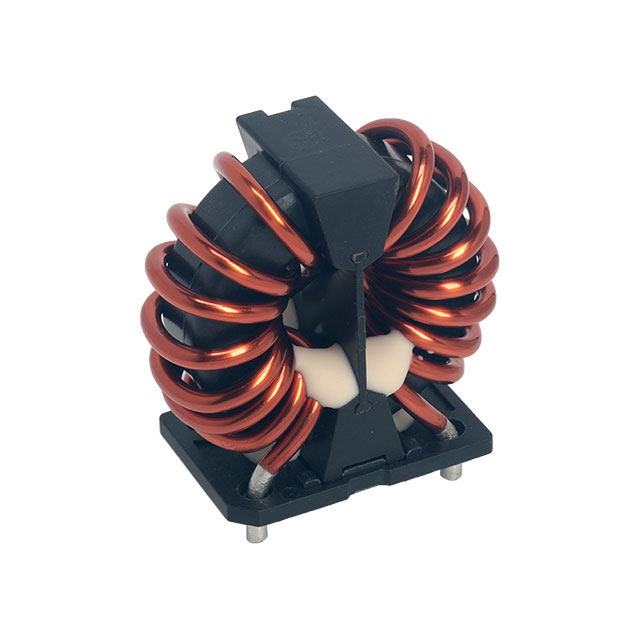

The KEMET SCR29XV-120-1R6A017JV is a vertical through-hole common mode choke designed for AC line filtering applications. It features an inductance of 1.76 mH at 100 kHz and supports a maximum DC current of 12 A. The component has a minimum DC resistance of 6.43 mOhm and withstands 1 kVAC insulation voltage. It operates within a temperature range of -40°C to +150°C and holds AEC-Q200 automotive qualification.

Feature Summary

• Provides effective common mode noise suppression for AC power lines
• Automotive-grade reliability certified under AEC-Q200 standards
• Vertical mounting configuration facilitates PCB integration

Applications

• AC line input filtering in automotive electronic systems
• Noise suppression in high-current power supply circuits
• EMI reduction in industrial control equipment

Procurement Notes

Verify the complete part number including suffixes to ensure correct inductance and tolerance specifications. Confirm that the vertical package dimensions align with your PCB footprint requirements. Check for AEC-Q200 certification if automotive compliance is mandatory. Ensure the 12 A current rating meets your circuit's peak load demands without saturation.

Selection Notes

Select this component when high current handling and automotive reliability are required for AC line filtering. The 1.76 mH inductance offers specific attenuation characteristics suitable for standard EMI frequencies. Consider the vertical form factor for space-constrained boards where height is less critical than footprint area. Verify thermal management capabilities given the low DCR and high current rating.

Part Context

This component belongs to the KEMET SCR-XV series of common mode chokes. The series is engineered for robust performance in demanding environments, particularly within the automotive sector. These filters utilize advanced core materials to maintain inductance stability under high current loads while minimizing size and weight compared to traditional solutions.

Replacement Considerations

Direct substitutes must match the 1.76 mH inductance, 12 A current rating, and vertical through-hole package. Verify equivalent AEC-Q200 qualification and similar physical dimensions for board compatibility. Cross-reference datasheets for identical insulation voltage and operating temperature ranges to ensure functional parity.
