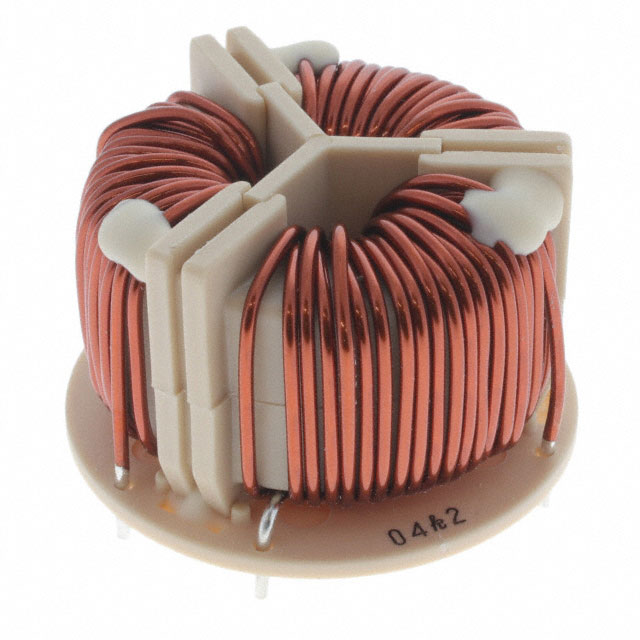

SCR31-010-S1R1A035JH

$8.02

Description：CMC 3.5MH 1A 3LN TH
Series：SCR
Mfr：KEMET
Package：Tray

SKU:bb2c5b470fb8 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3.5MH 1A 3LN TH
Series：SCR
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：3
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：24mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.654" Dia (42.00mm)
Height (Max)：1.063" (27.00mm)
Package / Case：Horizontal, 6 PC Pin
Inductance @ Frequency：3.5 mH @ 100 kHz
Qualification：-

Download product information

SCR31-010-S1R1A035JH

Overview

The KEMET SCR31-010-S1R1A035JH is a three-phase common mode filter designed for through-hole mounting. It features an inductance of 3.5 mH and supports a maximum DC current of 1 A. The component has a maximum DC resistance of 0.024 ohms and operates within a temperature range of -40°C to +120°C.

Feature Summary

Three-phase common mode filtering capability
Through-hole installation style
Heat resistant construction

Applications

AC line filtering
Power supply noise suppression
Electromagnetic interference reduction in industrial equipment

Procurement Notes

Verify the specific part number against official KEMET documentation to ensure compatibility with your circuit requirements. Confirm that the thermal and electrical specifications meet your system's operational limits before procurement.

Selection Notes

Select this component when three-phase common mode noise attenuation is required in applications involving moderate current levels. Ensure the through-hole package fits your PCB layout constraints and that the operating temperature range aligns with your environmental conditions.

Part Context

This component belongs to the SCR Three Phase series from KEMET, which specializes in common mode filters and chokes for power applications. The series is designed to provide effective noise suppression in three-phase systems.
