SCR38C-130-S1R4A015JH

Overview

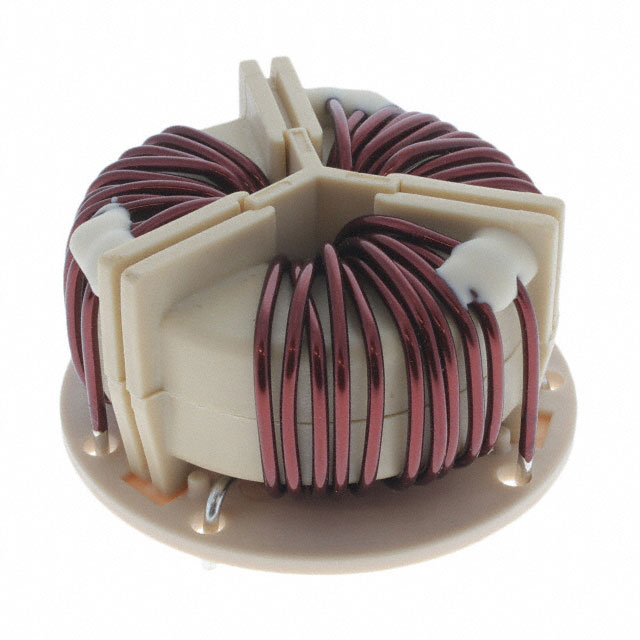

The KEMET SCR38C-130-S1R4A015JH is a three-phase common mode choke designed for power line filtering applications. It features a high inductance of 1.5 mH measured at 10 kHz, providing effective suppression of electromagnetic interference in AC/DC systems rated up to 500V. The component supports a continuous DC current rating of 13A with a maximum DC resistance of 9.2 mOhms. Constructed for through-hole mounting, it operates reliably within a temperature range starting from -40°C, ensuring stability in demanding industrial and commercial environments.

Feature Summary

• Provides high impedance common mode filtering for three-phase power lines
• Supports high current handling capabilities suitable for robust power applications
• Designed for through-hole installation to ensure secure mechanical mounting

Applications

• Audio-visual equipment power supplies
• Home appliance power circuits
• General industrial power supply units

Procurement Notes

Verify the complete part number including suffixes against official KEMET documentation to ensure correct specifications. Confirm voltage ratings and current limits match system requirements before integration. Check datasheet revisions for any updates to electrical characteristics or mechanical dimensions. Ensure sourcing channels provide genuine components with traceable manufacturing records.

Selection Notes

Select this component when three-phase EMI suppression is required for high-current AC/DC applications. Evaluate the 1.5 mH inductance value against specific noise frequency targets. Consider the 13A current rating relative to peak load conditions. Assess the through-hole form factor against available PCB space and assembly methods.

Part Context

This component belongs to the KEMET SCR Three Phase Series, which offers common mode chokes for power line filtering. The series is engineered for reliability in industrial and consumer electronics. The SCR designation indicates its classification within KEMET's portfolio of magnetic components designed for electromagnetic compatibility enhancement in power distribution networks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative components by matching inductance, current rating, and physical footprint against original design specifications.
