SCR47-350-1R6C016J

Overview

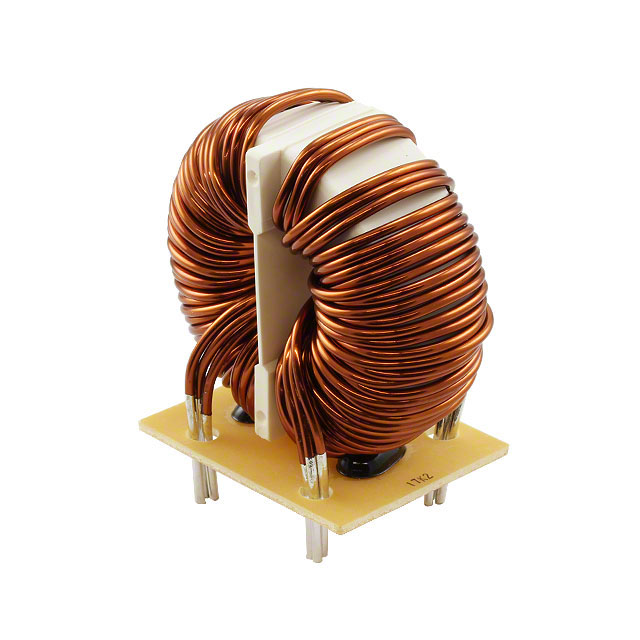

The KEMET SCR47-350-1R6C016J is a single-channel common mode choke designed for through-hole PCB mounting. It utilizes proprietary S15H ferrite material to achieve high permeability and impedance in a space-saving form factor. The component offers an inductance of 1.6 mH at 10 kHz, supports a maximum DC current of 35 A, and features a maximum DC resistance of 3.5 mOhms. It operates within a temperature range of -25°C to +120°C and meets UL 94 V-0 flame retardancy standards.

Feature Summary

• Utilizes proprietary S15H ferrite material for high permeability and impedance
• Space-saving design enabled by high-performance magnetic core
• Meets UL 94 V-0 flame retardancy classification

Applications

• Power line filtering in industrial equipment
• EMI suppression in automotive electronics
• Noise reduction in high-current DC circuits

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct electrical characteristics and packaging configuration. Confirm that the required inductance value and current rating align with the system design specifications before procurement. Check for any recent updates to the RoHS compliance status or material declarations directly from KEMET documentation.

Selection Notes

Select this component when high current handling capability is required alongside effective common mode noise suppression. The low DC resistance minimizes power loss in high-amperage applications. Ensure the operating environment stays within the specified temperature limits and that the physical dimensions fit the available PCB real estate constraints.

Part Context

This part belongs to the SCR47 series of common mode chokes from KEMET, which are engineered for robust performance in demanding environments. The series leverages advanced ferrite materials to provide efficient EMI filtering solutions for power lines where space is limited but high current capacity is essential.

Replacement Considerations

Consult KEMET's official cross-reference tools or datasheets for verified substitute part numbers. Do not assume compatibility based on similar nominal values without verifying pinout, physical dimensions, and certified electrical parameters.
