SCR47B-200-S2R0A025JH-P

Overview

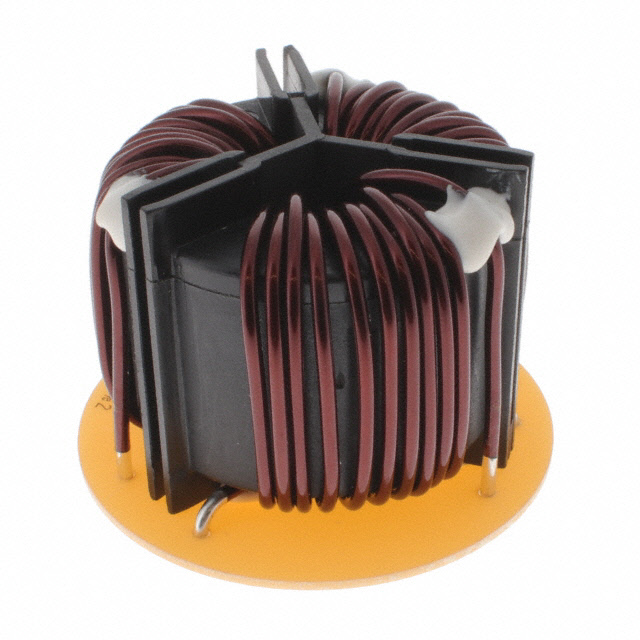

The KEMET SCR47B-200-S2R0A025JH-P is a three-phase common mode choke designed for AC line filtering applications. It features an inductance of 2500 uH and supports a maximum DC current of 20 A. The component has a maximum DC resistance of 7.8 mOhms and operates within a temperature range of -40 C to +130 C. It utilizes a through-hole mounting style with a vertical orientation.

Feature Summary

• Three-phase configuration for balanced noise suppression
• Nanocrystalline metal core technology for high permeability
• Through-hole termination for PCB integration

Applications

• AC line filtering in industrial power systems
• Noise suppression in three-phase motor drives
• EMI reduction in renewable energy inverters

Procurement Notes

Verify the complete part number including the suffix '-P' to ensure correct packaging and specifications. Confirm that the 20 A current rating and 2500 uH inductance align with your circuit requirements. Check RoHS compliance status as indicated in official documentation before procurement.

Selection Notes

Select this component when high inductance is required for three-phase common mode noise attenuation. Ensure the PCB layout accommodates the through-hole footprint and vertical height constraints. Verify thermal management capabilities given the operating temperature range and current handling capacity.

Part Context

This part belongs to the KEMET SCR series, which specializes in three-phase common mode chokes. The series utilizes nanocrystalline cores to achieve ultra-high inductance values suitable for stringent EMI/RFI filtering requirements in power electronics applications.

Replacement Considerations

Direct substitutes may include other KEMET SCR series parts with similar inductance and current ratings. Cross-reference with SCF-X series if higher inductance is needed. Verify pinout compatibility and mechanical dimensions before substitution.
