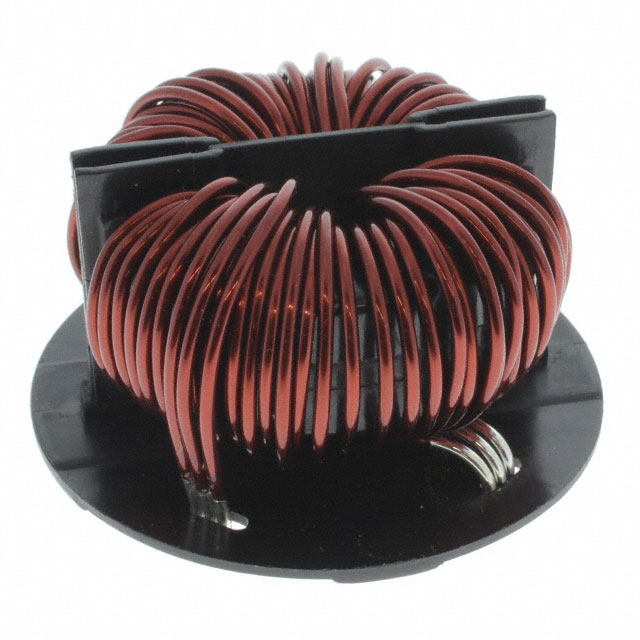

SCR47B-350-1R6C016JH-D

$14.47

Description：CMC 1.6MH 35A 2LN TH
Series：SCR
Mfr：KEMET
Package：Tray

SKU:cbf3c7ef3e4a Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.6MH 35A 2LN TH
Series：SCR
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：35A
DC Resistance (DCR) (Max)：3.5mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：250V
Operating Temperature：25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.756" Dia (70.00mm)
Height (Max)：1.496" (38.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：1.6 mH @ 10 kHz
Qualification：-

Download product information

SCR47B-350-1R6C016JH-D

Overview

The KEMET SCR47B-350-1R6C016JH-D is a single-channel common mode choke designed for PCB mounting via through-hole termination. It features an inductance of 1.6 mH and supports a maximum DC current of 35 A with a maximum DC resistance of 3.5 mOhms. Rated for 500 V, the component operates within a temperature range of -25 °C to +120 °C.

Feature Summary

Provides common mode noise filtering for AC line applications
Supports high current handling up to 35 A
Designed for robust through-hole PCB integration

Applications

AC line input filtering
Power supply EMI suppression
Industrial equipment noise reduction

Procurement Notes

Verify the complete part number including the suffix '-D' against official KEMET documentation to ensure correct configuration. Confirm that the through-hole package dimensions and pin spacing match your PCB layout requirements before procurement.

Selection Notes

Select this component when high current capacity and significant inductance are required for common mode noise suppression. Ensure the operating voltage does not exceed 500 V and the ambient temperature remains within the specified -25 °C to +120 °C range for reliable performance.

Part Context

This component belongs to the KEMET SCR47 series of power common mode chokes. The series is characterized by through-hole construction and high current ratings suitable for demanding power electronics applications requiring effective electromagnetic interference mitigation.
