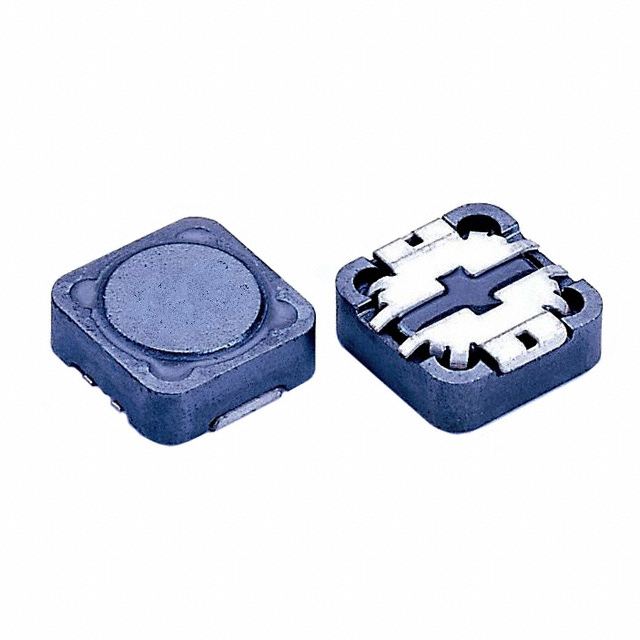

SCRH124-330

$0.76

Description：FIXED IND 33UH 2.43A 97 MOHM SMD
Series：SCRH124
Mfr：Signal Transformer
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c259eadc9c3c Category: Fixed Inductors Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SCRH124-330 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 33UH 2.43A 97 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SCRH124-330

Description：FIXED IND 33UH 2.43A 97 MOHM SMD
Series：SCRH124
Mfr：Signal Transformer
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Material - Core：-
Inductance：33 µH
Tolerance：±20%
Current Rating (Amps)：2.43 A
Current - Saturation (Isat)：2.7A
Shielding：Shielded
DC Resistance (DCR)：97mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)：0.177" (4.50mm)

Fixed Inductors datasheet and documents for SCRH124-330

SCRH124-330

Fixed Inductors Overview

The SCRH124-330 is a shielded surface-mount power inductor from the SCRH series, manufactured by Signal Transformer. It features a ferrite core and wirewound construction with standard terminals. The component provides an inductance of 33 µH with a tolerance of ±20%. It supports a maximum DC current of 2.43 A and a saturation current of 2.7 A at 100 kHz. The maximum DC resistance is 97 mΩ. The package dimensions are 12.5 mm in length, 12.5 mm in width, and 4.5 mm in height.

Fixed Inductors Feature Summary

Shielded design to minimize electromagnetic interference
Ferrite core construction for stable magnetic performance
Surface-mount configuration for automated assembly

Fixed Inductors Applications

DC to DC converter applications
Power supply filtering
General power electronics circuits

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with surface-mount reflow processes. Check for any recent product change notifications or discontinuance updates directly from Signal Transformer before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component based on the required 33 µH inductance and current handling capabilities. Verify that the 12.5 mm x 12.5 mm footprint fits the PCB layout constraints. Confirm that the shielding characteristics meet the system's EMI requirements. Ensure the operating temperature range aligns with the application environment.

Fixed Inductors Part Context

This component belongs to the SCRH series of SMD power inductors from Signal Transformer. The series offers various inductance values within a consistent form factor. These inductors are designed for high-efficiency power conversion applications requiring compact size and reliable performance under load conditions.
