SCRH3D16-820

$0.35

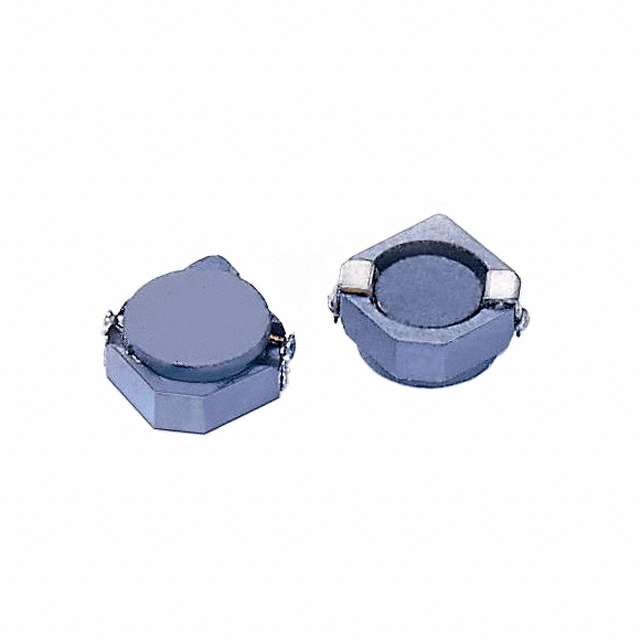

Description：FIXED IND 82UH 410MA 1.55OHM SMD
Series：SCRH3D16
Mfr：Signal Transformer
Package：Tape & Reel (TR)

SKU:53f525cee29d Category: Fixed Inductors Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SCRH3D16-820 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 82UH 410MA 1.55OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SCRH3D16-820

Description：FIXED IND 82UH 410MA 1.55OHM SMD
Series：SCRH3D16
Mfr：Signal Transformer
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：82 µH
Tolerance：±30%
Current Rating (Amps)：410 mA
Current - Saturation (Isat)：170mA
Shielding：Shielded
DC Resistance (DCR)：1.55Ohm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max)：0.071" (1.80mm)

Fixed Inductors datasheet and documents for SCRH3D16-820

SCRH3D16-820

Fixed Inductors Overview

The SCRH3D16-820 is a shielded surface-mount power inductor from the SCRH series by Signal Transformer. It features a ferrite core and wirewound construction with an inductance of 82 µH at a test frequency of 100 kHz. The component has a maximum DC resistance of 1.55 Ohms, a rated current of 410 mA, and a saturation current of 410 mA. It operates within a temperature range of -40°C to 125°C and measures 3.20mm x 3.20mm with a height of 1.8mm.

Fixed Inductors Feature Summary

Shielded design minimizes electromagnetic interference
Ferrite core supports high-frequency power applications
Surface mount package enables automated assembly

Fixed Inductors Applications

Power supply filtering
DC-DC converter circuits
Signal conditioning modules

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for precise electrical tolerances and thermal characteristics before integration. Confirm that the nonstandard package dimensions align with the target PCB footprint. Ensure compliance with RoHS3 regulations if required by the end product specifications.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and moderate current handling. Compare the 1.55 Ohm DCR against circuit loss requirements. Evaluate the 410 mA saturation limit against peak load currents to prevent performance degradation under heavy loads.

Fixed Inductors Part Context

This part belongs to the SCRH series of SMD power inductors designed for space-constrained electronics. The series offers various inductance values and current ratings to support diverse power management topologies while maintaining low profile and reliable magnetic shielding.
