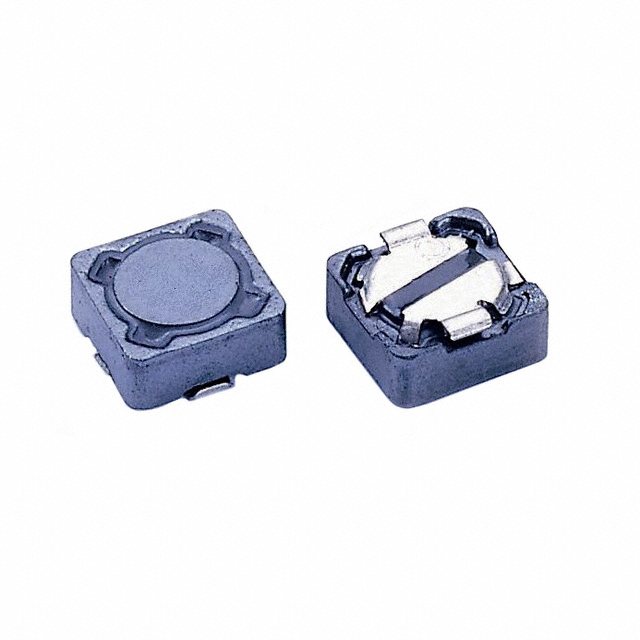

SCRH73-680 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 68UH 610MA 520MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SCRH73-680
- Description：FIXED IND 68UH 610MA 520MOHM SMD
- Series：SCRH73
- Mfr：Signal Transformer
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：68 µH
- Tolerance：±20%
- Current Rating (Amps)：610 mA
- Current - Saturation (Isat)：610mA
- Shielding：Shielded
- DC Resistance (DCR)：520mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.307" L x 0.307" W (7.80mm x 7.80mm)
- Height - Seated (Max)：0.138" (3.50mm)
- Features：-
Fixed Inductors datasheet and documents for SCRH73-680
Fixed Inductors Overview
The SCRH73-680 is a shielded surface-mount power inductor from the SCRH series by Bel Signal Transformer. It features a ferrite core and wirewound construction with an inductance of 68 µH ±30%. The component has a maximum DC resistance of 520 mΩ, a saturation current of 610 mA, and operates within a temperature range of -40°C to +125°C.
Fixed Inductors Feature Summary
- Shielded design minimizes electromagnetic interference
- Ferrite core supports high-frequency power applications
- Surface-mount package enables automated PCB assembly
Fixed Inductors Applications
- DC-DC converter circuits
- Power supply filtering stages
- General-purpose power electronics
Fixed Inductors Procurement Notes
Verify manufacturer part numbers against official datasheets before procurement. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure storage conditions meet specified humidity and temperature limits to maintain component integrity during handling and soldering processes.
Fixed Inductors Selection Notes
Select this component for applications requiring compact shielding and moderate current handling. Evaluate saturation current limits against peak load requirements. Consider thermal performance and DC resistance impacts on overall system efficiency when integrating into power management designs.
Fixed Inductors Part Context
This part belongs to the SCRH family of shielded power inductors designed for space-constrained electronic systems. The series offers various inductance values and current ratings to suit different power conversion topologies while maintaining consistent physical footprint standards across the product line.
Fixed Inductors Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify electrical parameters such as inductance tolerance, saturation current, and DC resistance match original requirements. Ensure mechanical dimensions and terminal configurations are compatible with existing PCB layouts.
