SCT19XV-100-1R1A009JV

Overview

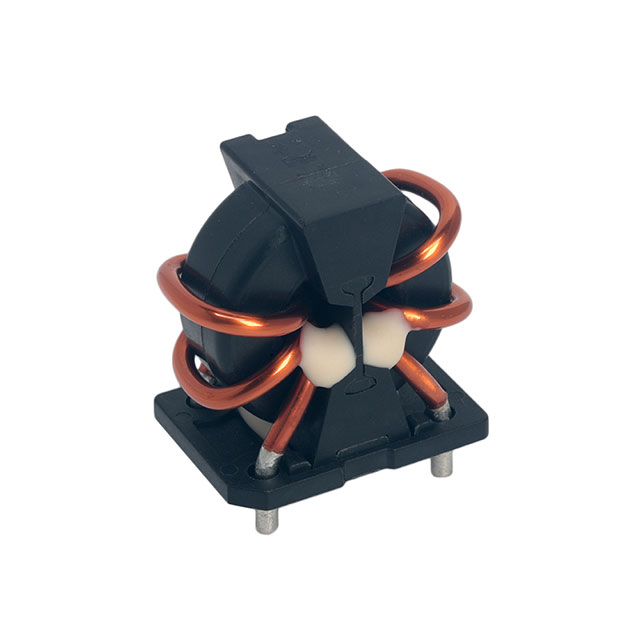

The KEMET SCT19XV-100-1R1A009JV is a vertical mount common mode choke designed for high-voltage automotive applications. It features an inductance of 300 µH and supports a maximum DC current of 10 A with a maximum DC resistance of 6.03 mΩ. The component operates within a temperature range of -40°C to +150°C and holds AEC-Q200 qualification, ensuring reliability in demanding environments.

Feature Summary

• AEC-Q200 qualified for automotive grade reliability
• Vertical through-hole mounting configuration
• High thermal stability up to 150°C

Applications

• Automotive power supply filtering
• Electric vehicle (EV) inverter circuits
• On-board charger (OBC) input stages

Procurement Notes

Verify the specific suffix '1R1A009JV' against the official KEMET datasheet to confirm exact electrical tolerances and packaging details. Ensure the procurement channel provides traceability documentation required for AEC-Q200 certified components used in safety-critical automotive systems.

Selection Notes

Select this component when a compact vertical footprint is required for high-current automotive filtering. The 10 A rating and low DCR make it suitable for applications requiring efficient noise suppression without significant conduction losses. Verify that the 300 µH inductance meets the specific EMI attenuation requirements of the target circuit design.

Part Context

This part belongs to the KEMET SCT-XV series, which specializes in high-performance common mode chokes for automotive electronics. The series is engineered to withstand harsh operating conditions, including high temperatures and vibration, making it a standard choice for modern electric and hybrid vehicle powertrains.

Replacement Considerations

Consult the official KEMET replacement guide for direct equivalents. Verify that any substitute maintains the same 10 A current rating, 300 µH inductance, and AEC-Q200 certification to ensure compatibility with existing automotive safety standards.
