SCT25XV-080-1R2A018JV

$10.67

Description：CMC 2.6MH 8A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray

SKU:8f7e1b4dc19f Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.6MH 8A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：14.41mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.516" L x 1.043" W (38.50mm x 26.50mm)
Height (Max)：1.378" (35.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.6 mH @ 100 kHz
Qualification：-

Download product information

SCT25XV-080-1R2A018JV

Overview

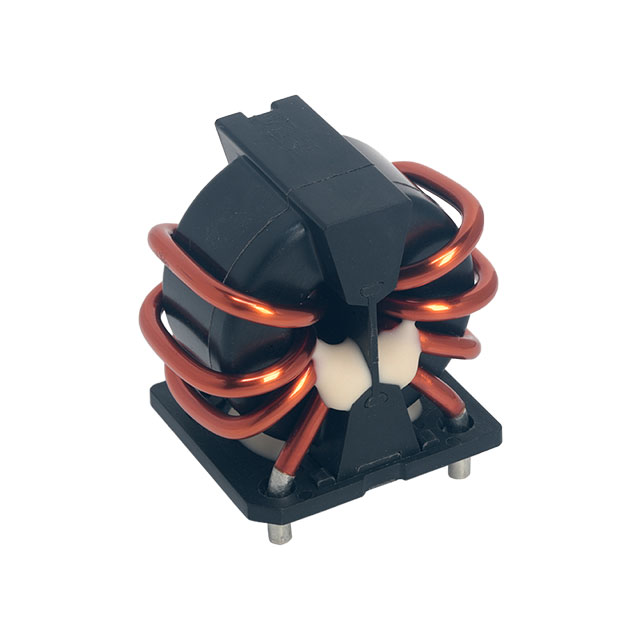

The KEMET SCT25XV-080-1R2A018JV is a through-hole common mode filter from the SCT-XV series, designed for AC line applications. It features an inductance of 2.6 mH and supports a DC current rating of 8 A. The component has a maximum DC resistance of 14.41 mOhms and operates at 1000 V AC. It meets AEC-Q200 automotive qualification standards and functions within a temperature range of -40°C to +150°C.

Feature Summary

High current handling capability with an 8 A DC rating
Automotive grade reliability certified under AEC-Q200 standards
Extended thermal stability suitable for high-temperature environments up to 150°C

Applications

AC line filtering in automotive electronics
Common mode noise suppression in power circuits
EMI reduction in industrial equipment

Procurement Notes

Verify the specific datasheet version for the SCT25XV-080-1R2A018JV to confirm mechanical dimensions and terminal specifications. Ensure compatibility with assembly processes regarding the through-hole mounting style. Cross-reference the AEC-Q200 certification details for your specific application requirements.

Selection Notes

Select this component when high current capacity and automotive-grade durability are required for AC line filtering. The 2.6 mH inductance provides effective common mode noise attenuation. Consider the 14.41 mOhm DC resistance for efficiency calculations in low-voltage drop scenarios.

Part Context

This part belongs to the KEMET SCT-XV series of common mode chokes. These components are engineered for robust performance in demanding environments. The series offers various inductance and current ratings to suit different power management needs while maintaining compliance with automotive industry standards.
