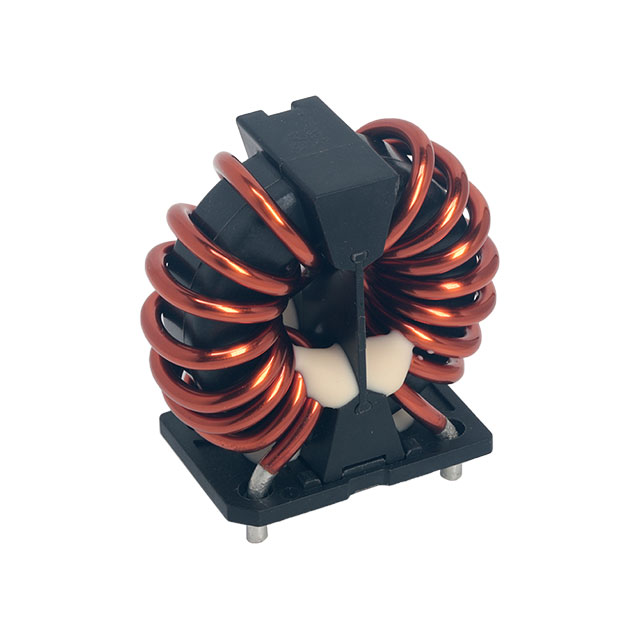

SCT29XV-060-1R1A036JV

$11.22

Description：CMC 4.33MH 6A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray

SKU:3ef3d4f9d3d7 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 4.33MH 6A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：27.2mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.634" L x 1.043" W (41.50mm x 26.50mm)
Height (Max)：1.524" (38.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：4.33 mH @ 100 kHz
Qualification：-

Download product information

SCT29XV-060-1R1A036JV

Overview

The KEMET SCT29XV-060-1R1A036JV is a radial leaded common mode choke from the SCT-XV series, designed for AC line filtering applications. It features an inductance of 4.33 mH with a tolerance of ±30%, rated for a maximum DC current of 6 A and a maximum DC resistance of 27.2 mΩ. The component supports vertical mounting via through-hole termination and operates within a temperature range of -40°C to +150°C. It is qualified under AEC-Q200 standards and withstands 1000 VAC insulation voltage.

Feature Summary

AEC-Q200 automotive qualification for reliability
High thermal stability up to 150°C
Vertical through-hole mounting configuration

Applications

AC line filtering in automotive electronics
Common mode noise suppression in power supplies
EMI reduction in vehicle electrical systems

Procurement Notes

Verify the complete part number including suffixes against official KEMET documentation to ensure correct inductance and current ratings. Confirm AEC-Q200 compliance requirements match your specific application standards. Check datasheet for mechanical dimensions and mounting orientation details before integration.

Selection Notes

Select this component when high inductance (4.33 mH) and robust thermal performance are required for automotive AC line filtering. Ensure the 6 A current rating meets circuit demands and that vertical mounting fits the PCB layout constraints. Verify insulation voltage compatibility with system operating conditions.

Part Context

This part belongs to the KEMET SCT-XV series of radial leaded common mode chokes. The series is characterized by high inductance values and AEC-Q200 qualification, targeting demanding automotive environments. The SCT29XV variant specifically offers 4.33 mH inductance for effective low-frequency noise attenuation.
