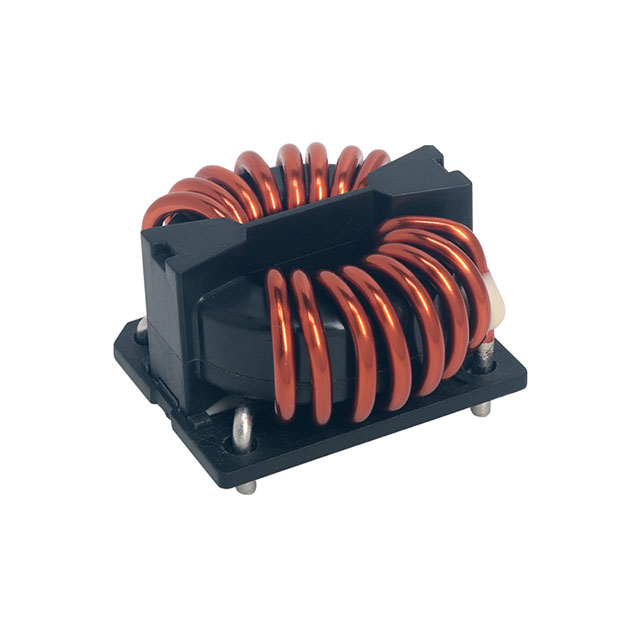

SCT29XV-120-1R6A017JH

$11.22

Description：CMC 960UH 12A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray

SKU:fb26b8d6a4a0 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 960UH 12A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：12A
DC Resistance (DCR) (Max)：6.45mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.634" L x 1.043" W (41.50mm x 26.50mm)
Height (Max)：1.524" (38.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：960 µH @ 100 kHz
Qualification：-

Download product information

SCT29XV-120-1R6A017JH

Overview

The KEMET SCT29XV-120-1R6A017JH is a radial leaded common mode choke filter designed for automotive applications. It features an inductance of 0.96 mH and supports a maximum DC current of 12 A with an equivalent series resistance (ESR) of 6.45 mOhms. The component operates within a temperature range of -40°C to +150°C and is rated for 1 kV AC. It holds AEC-Q200 qualification, ensuring reliability in harsh environments.

Feature Summary

AEC-Q200 qualified for automotive grade reliability
High current handling capability up to 12 A
Wide operating temperature range from -40°C to +150°C
Radial through-hole mounting style

Applications

Automotive AC line filtering
Common mode noise suppression in vehicle electronics
Power supply input stages in automotive systems

Procurement Notes

Verify the specific part number suffix against official KEMET documentation to confirm exact electrical characteristics and packaging details. Ensure compatibility with existing PCB footprints and thermal management requirements. Confirm AEC-Q200 certification status if required by your specific application standards. Cross-reference datasheet revisions to ensure design continuity.

Selection Notes

Select this component when high current capacity and wide temperature tolerance are required for automotive common mode filtering. Compare inductance values and DC resistance against circuit requirements to ensure effective noise suppression without excessive voltage drop. Consider the radial leaded package constraints during layout planning.

Part Context

This component belongs to the KEMET SCT-XV series of common mode chokes. These filters are engineered specifically for automotive environments, offering robust performance under varying thermal conditions. The series provides solutions for electromagnetic interference (EMI) reduction in power lines.

Replacement Considerations

SCF29XV-120-1R6A017JH offers similar specifications but differs in physical dimensions and potentially inductance tolerance. Verify mechanical fit and electrical parameters before substitution.
