SCT39XV-120-1R6A024JH

Overview

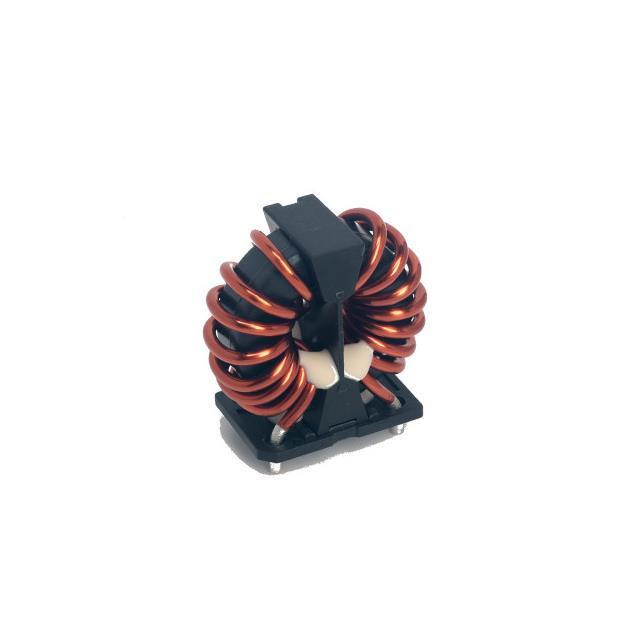

The KEMET SCT39XV-120-1R6A024JH is a common mode choke designed for automotive applications, certified to AEC-Q200 standards. It features an inductance of 4.3 mH and supports a DC current rating of 12 A. The component has a maximum DC resistance of 0.0136 ohms and withstands up to 1000 V AC. It operates within a temperature range starting from -40°C.

Feature Summary

• Automotive-grade reliability with AEC-Q200 certification
• High current handling capability of 12 A
• Low DC resistance for efficient power transmission

Applications

• Automotive electronic circuits requiring EMI suppression
• Power supply input filtering in vehicles
• Common mode noise reduction in high-current automotive systems

Procurement Notes

Verify the specific part number against official KEMET documentation to ensure accuracy, as variations such as SCF39XV may exist. Confirm that the required specifications match the 4.3 mH inductance and 12 A current rating. Ensure compliance with AEC-Q200 standards if automotive qualification is mandatory for your application.

Selection Notes

Select this component when automotive-grade durability and high current capacity are required. The 12 A rating suits high-power applications, while the 4.3 mH inductance provides effective common mode noise filtering. Verify that the operating temperature range meets environmental requirements.

Part Context

This component belongs to KEMET's SCT39XV series of common mode chokes. These filters are engineered for robust performance in demanding environments. The series is characterized by high current ratings and low resistance, making it suitable for critical automotive electronics where reliability is paramount.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Verify compatibility with existing designs before considering alternative components.
