SCT39XV-150-S1R7A011JH

Overview

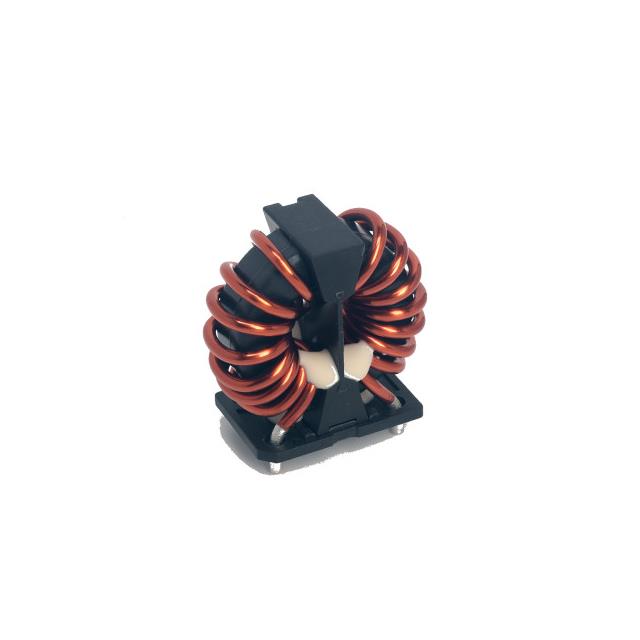

The KEMET SCT39XV-150-S1R7A011JH is a common mode choke filter designed for automotive applications. It features an inductance of 900 µH at 100 kHz and supports a maximum DC current of 15 A. The component has a typical DC resistance of 5.45 mΩ and operates within a temperature range of -40°C to +150°C. It utilizes through-hole mounting with horizontal installation style.

Feature Summary

• Automotive-grade reliability certified under AEC-Q200 standards
• High thermal stability suitable for demanding environments
• Horizontal through-hole construction for robust mechanical integration

Applications

• Automotive power supply filtering
• Electric vehicle (EV) and hybrid electric vehicle (HEV) systems
• Industrial motor drive noise suppression

Procurement Notes

Verify the specific suffix codes against official KEMET documentation to ensure exact electrical tolerances and packaging configurations match project requirements. Confirm AEC-Q200 certification status directly from the manufacturer datasheet prior to final qualification.

Selection Notes

Select this component when high current handling up to 15 A is required alongside significant common mode noise attenuation. The wide operating temperature range makes it suitable for harsh automotive environments where standard industrial components may fail.

Part Context

This part belongs to the KEMET SCT-XV series, which focuses on high-performance common mode chokes for automotive electronics. The series emphasizes durability and compliance with strict automotive quality standards, distinguishing it from general-purpose industrial filters.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Ensure any replacement maintains identical inductance, current rating, and AEC-Q200 certification to preserve system integrity.
