SCT39XV-190-2R1A014JH

Overview

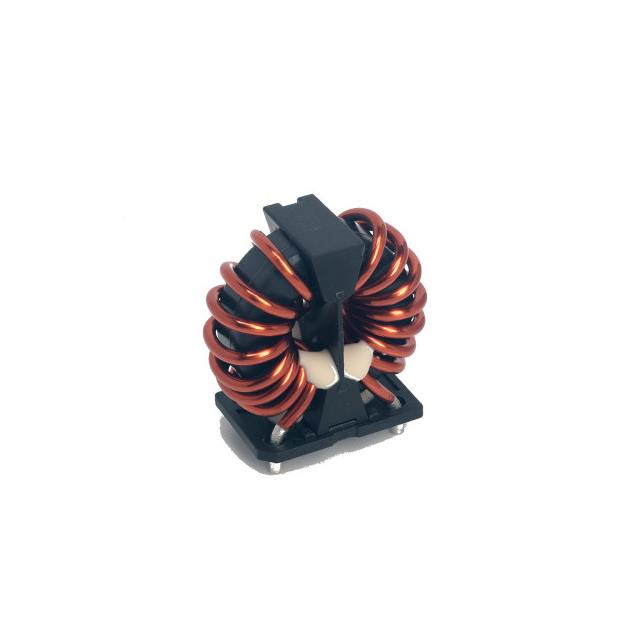

The KEMET SCT39XV-190-2R1A014JH is a two-line common mode choke designed for power distribution systems. It features an inductance of 1.46 mH and supports a DC current rating of 19 A. The component has a typical DC resistance of 5.03 mOhms and withstands up to 1000 V AC/DC. It operates within a temperature range starting from -40°C and meets the AEC-Q200 qualification standard.

Feature Summary

• Suppresses electromagnetic interference in power distribution circuits
• Qualified for automotive applications under AEC-Q200 standards
• Supports high continuous current handling capabilities

Applications

• Automotive power supply filtering
• Electromagnetic interference suppression in vehicle electronics
• Power distribution system noise reduction

Procurement Notes

Verify the exact part number against official KEMET documentation to ensure compatibility with specific design requirements. Confirm that the AEC-Q200 qualification aligns with target application standards. Check technical datasheets for precise thermal and electrical limits before integration into final assemblies.

Selection Notes

Select this component when designing circuits requiring robust EMI suppression for high-current automotive or industrial power lines. Ensure the 19 A current rating and 1.46 mH inductance meet the specific filter requirements of the target power stage. Verify voltage ratings against system operating conditions.

Part Context

This component belongs to the SCT series of common mode chokes manufactured by KEMET. These components are engineered for high-performance filtering in demanding environments. The series emphasizes reliability and compliance with stringent automotive quality standards, providing stable performance across varying operational temperatures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
