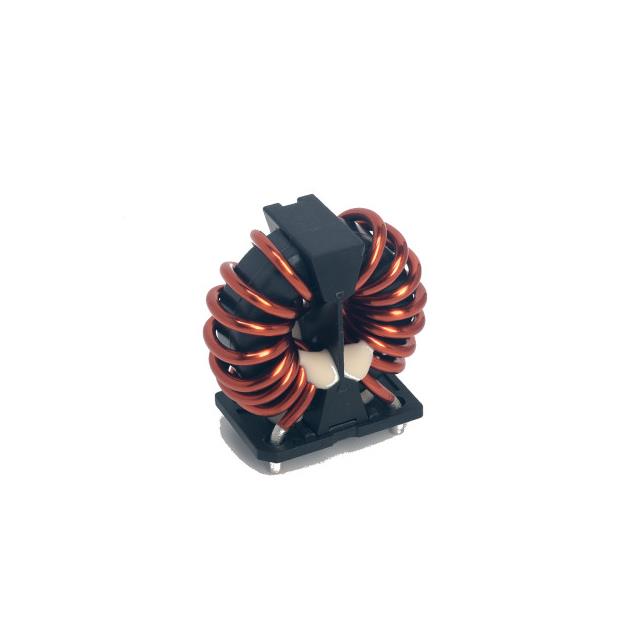

SCT39XV-310-Z1R8B008JH

$15.04

Description：CMC 476UH 31A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray

SKU:b6b5d98149b4 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 476UH 31A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：31A
DC Resistance (DCR) (Max)：1.84mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.087" Dia (53.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Horizontal, 8 PC Pin
Inductance @ Frequency：476 µH @ 100 kHz
Qualification：-

Download product information

SCT39XV-310-Z1R8B008JH

Overview

The KEMET SCT39XV-310-Z1R8B008JH is a three-phase asymmetric common mode choke from the SCT-XV series. It features an inductance of 476 µH at 100 kHz and supports a DC current rating of 31 A. The component has a maximum DC resistance of 1.84 mΩ. It operates within a temperature range of -40°C to +150°C and is designed for through-hole mounting.

Feature Summary

Three-phase asymmetric configuration for balanced noise suppression
High current handling capability suitable for power electronics
Wide operating temperature range up to 150°C

Applications

Electric vehicle (EV) powertrain systems
Industrial motor drives
Renewable energy inverters

Procurement Notes

Verify the specific part number SCT39XV-310-Z1R8B008JH against official KEMET documentation to confirm the 476 µH inductance and 31 A current rating. Ensure the three-phase asymmetric design matches the circuit requirements. Check for RoHS compliance and lead-free termination status as per the manufacturer's latest datasheet.

Selection Notes

Select this component when high current capacity and wide temperature operation are required for three-phase applications. The low DC resistance minimizes power loss. Confirm that the physical dimensions and mounting style fit the PCB layout constraints.

Part Context

This component belongs to the SCT-XV series, which provides common mode chokes for automotive and industrial applications. The series is characterized by high reliability and performance in demanding environments, supporting the transition to electric mobility and efficient power conversion.
