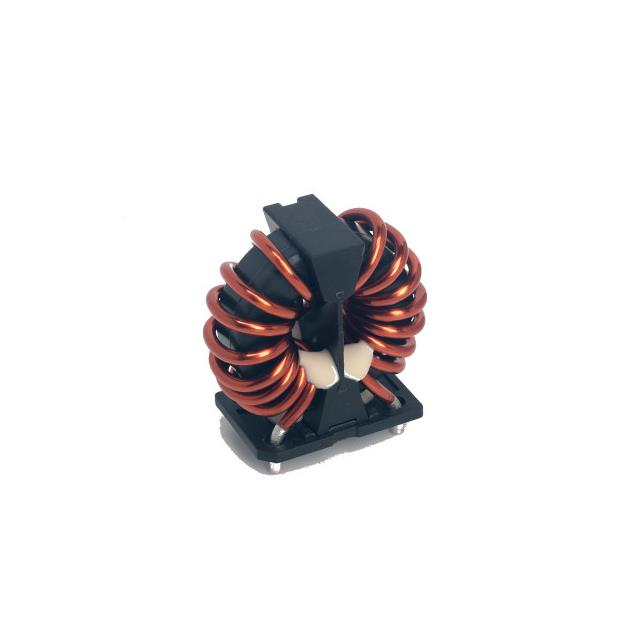

SCT39XV-400-2R2B005JH

$11.66

Description：CMC 187UH 40A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray

SKU:9d52784d4ef6 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 187UH 40A 2LN TH AEC-Q200
Series：SCT-XV
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：40A
DC Resistance (DCR) (Max)：0.78mOhm
Voltage Rating - DC：1000V (1kV)
Voltage Rating - AC：1000V (1kV)
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：2.087" Dia (53.00mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：187 µH @ 100 kHz
Qualification：-

Download product information

SCT39XV-400-2R2B005JH

Overview

The KEMET SCT39XV-400-2R2B005JH is a through-hole common mode choke from the SCT-XV series, rated for 1000V DC and 40A maximum DC current. It features an inductance of 0.187mH with a maximum DC resistance of 0.78mOhms. Designed for automotive applications, it holds AEC-Q200 qualification and operates within a temperature range of -40°C to +150°C.

Feature Summary

AEC-Q200 qualified for automotive reliability standards
High thermal stability supporting operation up to 150°C
Low DC resistance design for efficient power handling

Applications

Automotive power supply filtering
Common mode noise suppression in high-current circuits
Electromagnetic interference mitigation in vehicle electronics

Procurement Notes

Verify the specific voltage rating and inductance tolerance against the official datasheet before integration. Confirm that the AEC-Q200 certification aligns with your project's automotive quality requirements. Ensure the physical dimensions and mounting style are compatible with your PCB layout constraints.

Selection Notes

Select this component when high current capacity and elevated temperature performance are required in automotive environments. The low DC resistance minimizes power loss compared to standard chokes. Verify that the 1000V rating meets the system's isolation needs.

Part Context

This part belongs to the SCT-XV series of common mode chokes designed for robust automotive applications. It utilizes ferrite core technology to provide effective noise suppression while maintaining structural integrity under thermal stress.

Replacement Considerations

Check for direct substitutes within the SCT-XV family or other KEMET automotive choke lines that match the 40A current and 150°C temperature specifications.
