SCT39XV-500-Z2R4B004JH

Overview

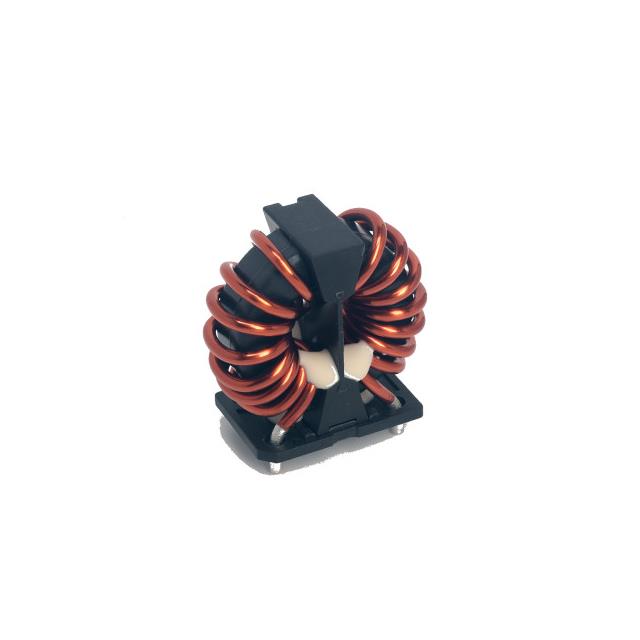

The KEMET SCT39XV-500-Z2R4B004JH is a common mode choke from the SCT Series, designed for automotive applications. It features an inductance of 119µH and a maximum DC current rating of 50A. The component has a maximum DC resistance of 510µohm and operates within a temperature range of -40°C to +150°C.

Feature Summary

• Complies with AEC-Q200 qualification standards for automotive electronics reliability.
• Engineered for high thermal stability with a maximum operating temperature of 150°C.

Applications

• Automotive electronic circuit filtering
• Common mode noise suppression in vehicle systems

Procurement Notes

Verify the complete part number including all suffixes against official manufacturer documentation to ensure correct specifications. Confirm that the specific variant matches the required AEC-Q200 compliance and electrical ratings for your design. Cross-reference datasheets for precise mechanical dimensions and mounting requirements before finalizing procurement.

Selection Notes

Select this component when designing for automotive environments requiring robust noise filtration under high current loads. Ensure the system voltage does not exceed the rated limits and that the operating temperature range aligns with the device's specified capabilities. Verify compatibility with existing board layouts and thermal management strategies.

Part Context

This component belongs to the SCT Series of common mode chokes manufactured by KEMET. These devices are specifically engineered for demanding automotive applications, offering reliable performance in suppressing electromagnetic interference while maintaining structural integrity under harsh environmental conditions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
