SD3460

$625.75

Description：DC BLOCK 2.92MM 10MHZ-40GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:17eabbbe92b9 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DC BLOCK 2.92MM 10MHZ-40GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：-
Frequency：-
RF Type：-
Secondary Attributes：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

SD3460

Overview

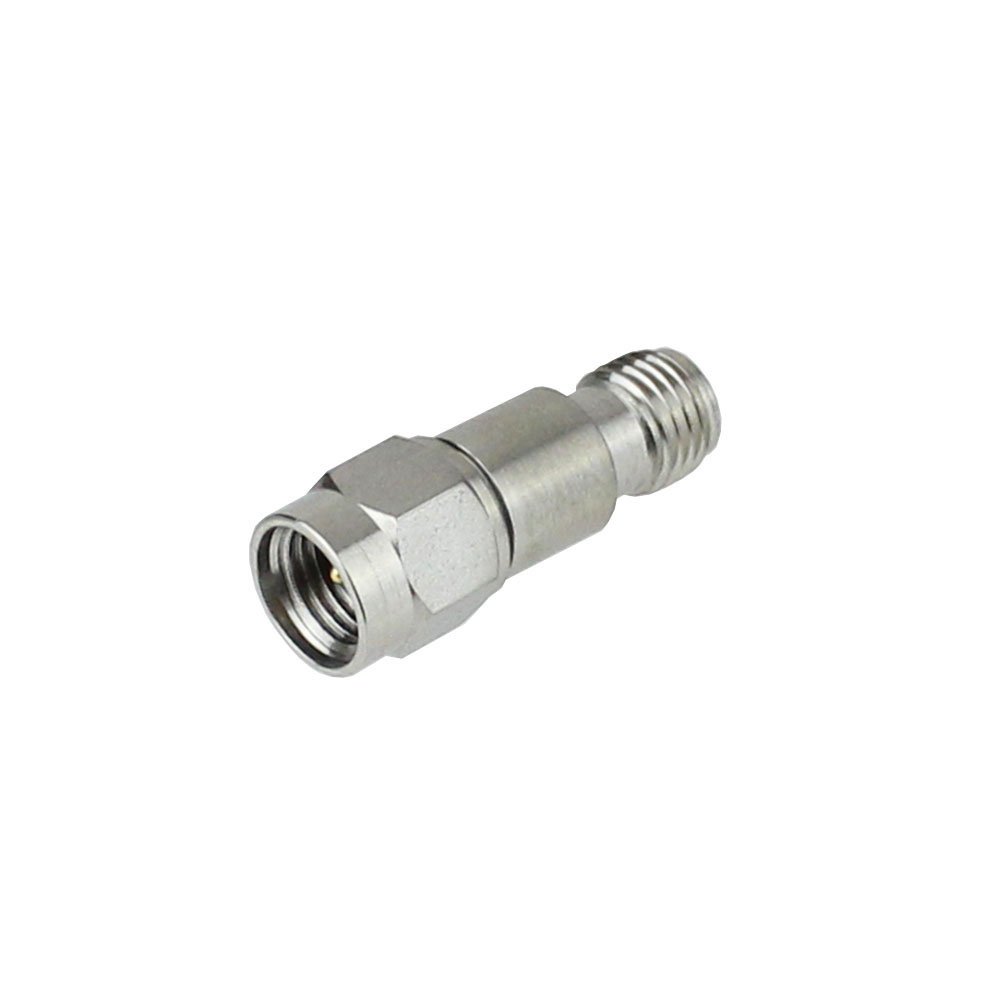

The SD3460 is a coaxial DC block manufactured by Fairview Microwave, designed for RF applications. It operates within a frequency range of 0.01 GHz to 40 GHz. The component features an insertion loss of 0.75 dB and a voltage standing wave ratio (VSWR) of 1.45:1. It supports a breakdown voltage of 200 Volts. This device functions as an interconnect element to isolate DC components while maintaining signal integrity in high-frequency systems.

Feature Summary

Provides DC isolation across a wide microwave frequency spectrum
Maintains low insertion loss for efficient signal transmission
Supports high breakdown voltage for robust operation

Applications

RF test and measurement setups requiring DC blocking
Microwave communication systems
Signal integrity preservation in high-frequency circuits

Procurement Notes

Verify the specific connector interface type and mounting configuration required for your system integration before ordering. Confirm that the 200 Volt breakdown rating meets your operational safety requirements. Ensure the 0.75 dB insertion loss specification aligns with your link budget calculations. Check compatibility with existing coaxial infrastructure to guarantee proper mechanical fit and electrical performance.

Selection Notes

Select this component when a broadband DC block is needed up to 40 GHz. Consider the VSWR of 1.45:1 for impedance matching needs. Evaluate the physical size against available space in the assembly. Compare against other models if lower insertion loss or different voltage ratings are necessary for specific application constraints.

Part Context

The SD3460 belongs to Fairview Microwave's line of RF and coaxial connectors and interconnect devices. These components support various wireless and radar applications. The product series focuses on providing reliable performance in demanding environments. It complements other passive components like cables and adapters in complete RF solutions.
