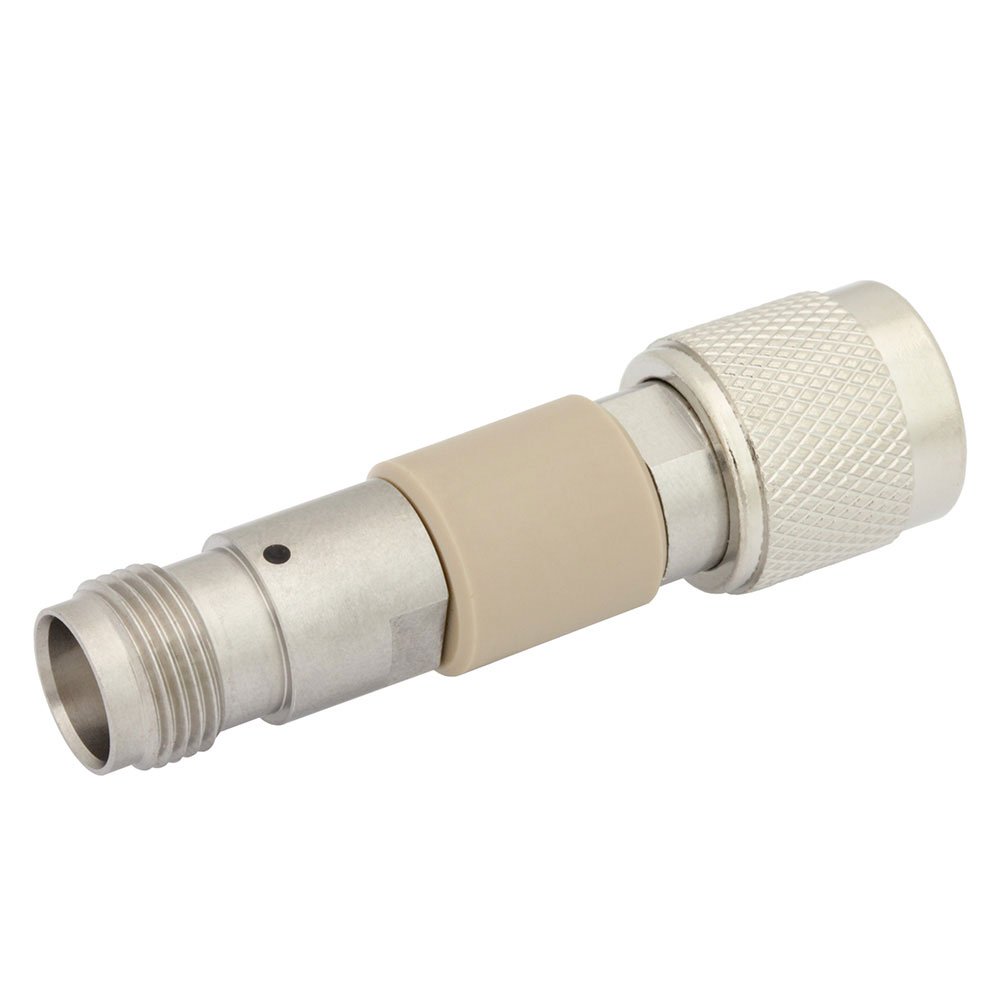

SD3472

$300.97

Description：DC BLOCK TNC 10MHZ-18GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:b9fb65cf6ff7 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DC BLOCK TNC 10MHZ-18GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：-
Frequency：-
RF Type：-
Secondary Attributes：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

SD3472

Overview

The SD3472 is an RF adapter manufactured by Fairview Microwave, designed as an inner and outer DC block for TNC connector series. It operates within a frequency range of 10 MHz to 18 GHz. The component facilitates signal integrity by blocking direct current while maintaining radio frequency transmission across the specified bandwidth. It is packaged individually in a bag and weighs approximately 22.226 grams.

Feature Summary

Provides both inner and outer DC blocking capabilities within a single adapter unit
Supports TNC connector interface compatibility for seamless integration
Operates effectively across a wide frequency spectrum up to 18 GHz

Applications

RF test and measurement setups requiring DC isolation
Signal chain configurations needing high-frequency DC blocking
TNC-based system integration where current isolation is critical

Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm technical specifications against official datasheets prior to ordering. Ensure compatibility with existing TNC infrastructure. Check for any regional shipping restrictions or limitations that may affect procurement timelines.

Selection Notes

Select this component when both inner and outer DC blocking are required simultaneously in a TNC application. Consider the 18 GHz upper frequency limit for high-speed signal integrity. Evaluate weight and form factor constraints for portable or space-sensitive installations compared to standard adapters.

Part Context

This part belongs to Fairview Microwave's RF Adapters - In Series category. It complements other adapters like the SD3469 (BNC series) and SD3482 (1.85mm series) by offering specialized DC blocking functionality within the TNC connector ecosystem for precise signal conditioning.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify exact dimensional and electrical compatibility before considering alternative components from other manufacturers.
