SDE0403A-220M

Fixed Inductors Overview

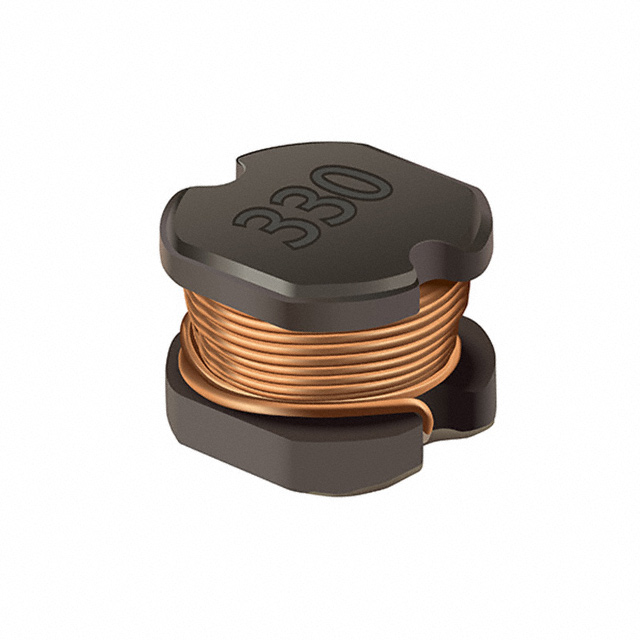

The Bourns SDE0403A-220M is a surface-mount power inductor with an inductance of 22 µH and a tolerance of ±20%. It features an unshielded wirewound ferrite core design. The component supports a maximum DC current of 700 mA, with a saturation current of 950 mA and a maximum DC resistance of 351 mΩ. Operating temperatures range from -40°C to +125°C, and it has a self-resonant frequency of 25 MHz. Dimensions are 4.5 mm x 4 mm x 3.2 mm.

Fixed Inductors Feature Summary

• Unshielded wirewound construction using ferrite core material
• Compliance with AEC-Q200 automotive qualification standards
• Compact surface-mount footprint suitable for space-constrained designs

Fixed Inductors Applications

• Automotive electronic systems
• DC power line filtering
• Noise suppression circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix matches the required inductance value and tolerance. Confirm that the package type aligns with the intended manufacturing process. Ensure the thermal rating meets the operational environment requirements. Cross-reference the datasheet parameters against the bill of materials specifications before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor is acceptable for the application layout. Consider the 700 mA heating current limit for continuous operation scenarios. Evaluate the 950 mA saturation threshold against peak load conditions. Verify that the 351 mΩ resistance fits within the system's efficiency constraints.

Fixed Inductors Part Context

This part belongs to the SDE0403A series of surface-mount power inductors manufactured by Bourns. The series offers various inductance values ranging from 1 µH to 68 µH. These components are designed for high current density applications requiring robust performance in compact form factors.

Fixed Inductors Replacement Considerations

Consult official Bourns documentation for direct cross-references. Verify compatibility of pinout, dimensions, and electrical characteristics with alternative suppliers.
