SDF1G03000S336

Overview

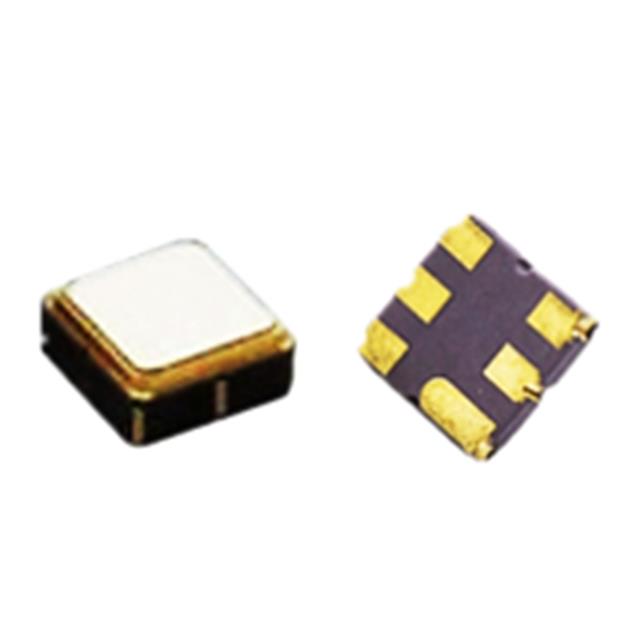

The SDF1G03000S336 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components, designed for wireless RF applications. It operates at a center frequency of 1.03 GHz with a bandwidth of 40 MHz. The component features an insertion loss of 1.5 dB and utilizes a 6-pad SMD package without leads, specifically in the 3030 case dimension format.

Feature Summary

• Surface Acoustic Wave technology for RF signal filtering
• Optimized for wireless communication systems
• Compact 3030 surface-mount package design

Applications

• Wireless RF signal processing
• Frequency selection in communication modules
• Signal conditioning in RF front-ends

Procurement Notes

Verify the exact center frequency and insertion loss specifications against the official manufacturer datasheet before integration. Confirm that the 6-pad SMD footprint matches the target PCB layout. Ensure compatibility with the intended operating temperature range and validate performance under specific load conditions as defined in the technical documentation.

Selection Notes

Select this component when a SAW filter is required for 1.03 GHz applications with low insertion loss requirements. The 3030 package size suits space-constrained designs. Compare electrical characteristics such as bandwidth and rejection levels against alternative filters to ensure compliance with system interference standards and signal integrity needs.

Part Context

This part belongs to the SXF series of SMD SAW filters from NextGen Components. These components are engineered for high-frequency RF applications, offering reliable performance in compact form factors. The series typically includes various center frequencies tailored for different wireless standards and regional allocations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout and electrical parameters if considering cross-referencing with other manufacturers' SAW filters.
