SDF1G26852S129

Overview

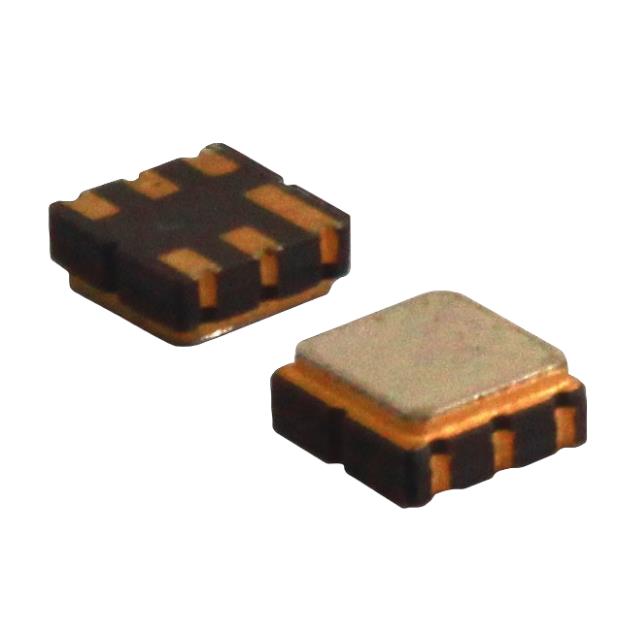

The SDF1G26852S129 is a Surface Mount Device (SMD) SAW filter from the NextGen Components SDF series. It operates at a center frequency of 1268.52 MHz with a typical insertion loss of 1.4 dB. The component utilizes a 3030 type package, designated as Case Code DCC6C, featuring six pads and precise dimensions of 3.0 mm length, 3.0 mm width, and 1.25 mm height. This surface-mount technology device is designed for integration into compact electronic circuits requiring specific RF filtering characteristics.

Feature Summary

• Surface mount SAW filter technology
• Six-pad configuration for stable mounting
• Compact 3030 case dimension profile

Applications

• RF signal processing circuits
• Wireless communication modules
• Frequency selective filtering applications

Procurement Notes

Verify the exact center frequency and insertion loss specifications against the official manufacturer datasheet before procurement. Confirm that the 3030 package dimensions align with your PCB footprint requirements. Ensure compatibility with your assembly process for surface-mount components. Cross-reference the part number to confirm availability through authorized distribution channels.

Selection Notes

Select this component when a 1268.52 MHz SAW filter is required in a compact 3030 package. Consider the 1.4 dB typical insertion loss impact on system performance. Evaluate the six-pad design for mechanical stability during assembly. Compare alternative frequencies if the operating band differs slightly from the specified center point.

Part Context

This part belongs to the SDF series of SMD SAW filters offered by NextGen Components. The series includes various models with different center frequencies and insertion losses, all sharing the same 3030 case code DCC6C physical form factor. These components are categorized under discrimination and filter devices within the distributor's inventory structure.

Replacement Considerations

Check for other SDF series parts with similar center frequencies if exact matches are unavailable. Verify that any substitute maintains the 3030 package dimensions and six-pad configuration to ensure PCB compatibility without redesign.
