SDF866M5DX8043

Overview

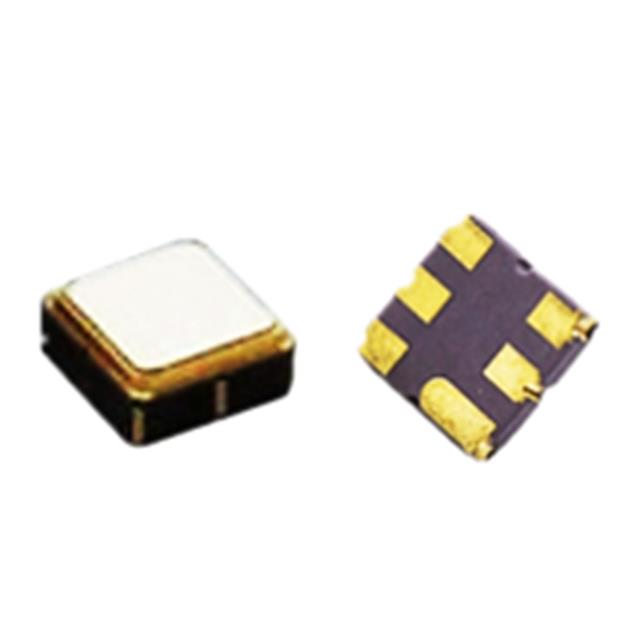

The SDF866M5DX8043 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components. It operates at a center frequency of 866.5000 MHz and features a typical insertion loss of 2.7 dB. The device utilizes a 3030 surface-mount package with dimensions of L3.0 x W3.0 x H1.25 mm and includes six pads for circuit integration.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for compact surface-mount integration
• Optimized for specific RF frequency applications

Applications

• RF signal processing circuits
• Wireless communication modules
• Mobile device front-end assemblies

Procurement Notes

Verify the component authenticity through official manufacturer channels or authorized distributors. Confirm that the part number matches the specific datasheet requirements for your design. Ensure compatibility with your assembly process regarding the 3030 package dimensions and pad configuration before finalizing procurement orders.

Selection Notes

Select this component when a SAW filter with an 866.5 MHz center frequency is required. Consider the 2.7 dB typical insertion loss and the 3030 package size relative to your board space constraints. Ensure the application environment supports the operational characteristics defined in the official specification sheet.

Part Context

This component belongs to the SDF series of SMD SAW filters from NextGen Components. The series offers various frequencies within the 3030 case code format, providing standardized solutions for RF filtering needs in consumer electronics and telecommunications hardware.

Replacement Considerations

Cross-reference with other manufacturers offering 866.5 MHz SAW filters in a 3030 package. Verify pinout compatibility and electrical specifications such as insertion loss and bandwidth before substituting.
