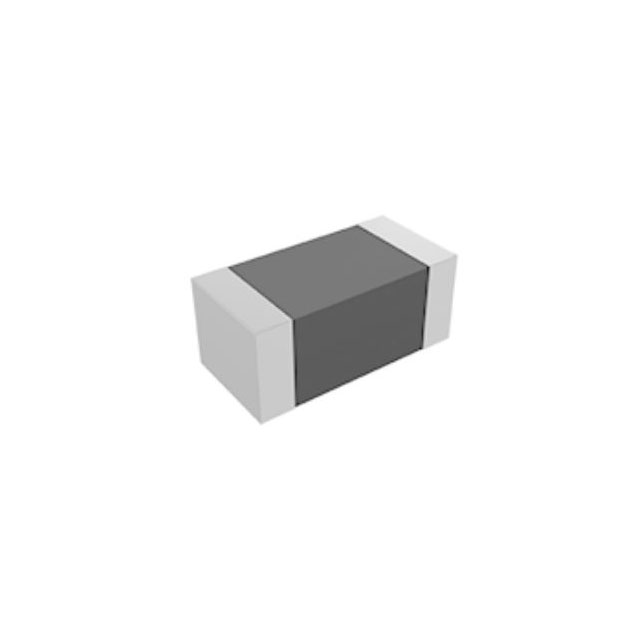

SDFL1005L47NMTF is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Shenzhen Sunlord Electronics Co., Ltd.. Its product description is FIXED IND 47NH 25MA 450MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SDFL1005L47NMTF
- Description：FIXED IND 47NH 25MA 450MOHM SMD
- Series：SDFL
- Mfr：Shenzhen Sunlord Electronics Co., Ltd.
- Package：Tape & Reel (TR)
- Type：Multilayer
- Material - Core：Ferrite
- Inductance：47 nH
- Tolerance：±20%
- Current Rating (Amps)：25 mA
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：450mOhm Max
- Q @ Freq：10 @ 50MHz
- Frequency - Self Resonant：220MHz
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：50 MHz
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric)
- Supplier Device Package：402
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max)：0.026" (0.65mm)
- Features：-
Fixed Inductors datasheet and documents for SDFL1005L47NMTF
Fixed Inductors Overview
The SDFL1005L47NMTF is a shielded multilayer inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an inductance of 47 nH and a maximum DC resistance (DCR) of 450 mOhm. The component is rated for a current of 25 mA and has a self-resonant frequency of 220 MHz. It utilizes a 0402 (1005 Metric) surface-mount package, providing a compact form factor suitable for space-constrained circuit designs.
Fixed Inductors Feature Summary
- Shielded multilayer construction to minimize electromagnetic interference
- Compact 0402 surface-mount package design
- High self-resonant frequency capability
Fixed Inductors Applications
- RF circuits
- Signal filtering applications
- General-purpose electronic devices
Fixed Inductors Procurement Notes
Verify the manufacturer part number against official Sunlord documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical parameters and packaging specifications. Cross-reference datasheet values with procurement requirements to avoid discrepancies in component selection.
Fixed Inductors Selection Notes
Select this component based on its 47 nH inductance value and 25 mA current rating. Ensure the 450 mOhm DCR meets the circuit's power loss constraints. Verify that the 0402 footprint aligns with the PCB layout and that the 220 MHz self-resonant frequency is sufficient for the target application bandwidth.
Fixed Inductors Part Context
This component belongs to the Sunlord series of shielded multilayer inductors. These components are designed for high-frequency applications where size and signal integrity are critical. The product line supports various industries including communications, consumer electronics, and automotive electronics through standardized surface-mount technologies.
Fixed Inductors Replacement Considerations
Consult official Sunlord documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
