SDR7030-221K

Fixed Inductors Overview

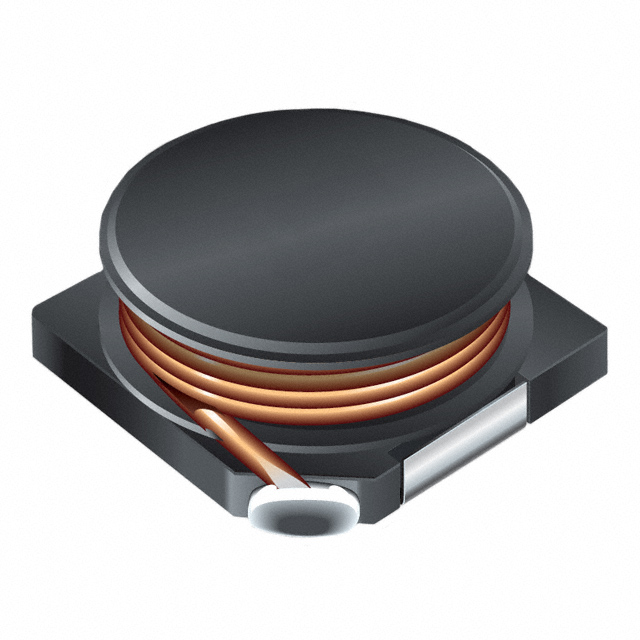

The SDR7030-221K is a fixed surface-mount power inductor from the Bourns SDR7030 series. It features an unshielded drum core and wirewound construction. The component provides an inductance of 220 µH with a tolerance of ±10%. It supports a maximum DC current of 0.32 A and has a maximum DC resistance of 1.6 Ohms. The self-resonant frequency is rated at 9 MHz, and the maximum seated height is 3.30 mm.

Fixed Inductors Feature Summary

• Utilizes an unshielded drum core design for standard power applications
• Constructed using wirewound technology for reliable performance
• Designed for surface mount mounting to facilitate automated assembly

Fixed Inductors Applications

• General purpose power supply circuits
• DC-DC converter input or output filtering
• Signal processing circuitry requiring fixed inductance

Fixed Inductors Procurement Notes

Verify the specific ordering suffix K against the manufacturer's official datasheet to confirm tolerance and packaging specifications. Ensure the procurement channel sources directly from authorized distributors to guarantee authenticity. Cross-reference the RoHS compliance status with the latest regulatory documentation provided by Bourns Inc. prior to finalizing purchase orders.

Fixed Inductors Selection Notes

Select this component when a 220 µH inductance value is required for low-current applications up to 0.32 A. Consider the unshielded nature of the drum core for potential magnetic interference in sensitive layouts. Evaluate the 1.6 Ohm DC resistance against efficiency requirements and the 3.30 mm height constraint within the target enclosure space.

Fixed Inductors Part Context

This part belongs to the SDR7030 series of SMD power inductors manufactured by Bourns Electronic Solutions. The series offers various inductance values tailored for different power management needs. The SDR7030-221K specifically targets applications needing moderate inductance with compact surface-mount footprints.

Fixed Inductors Replacement Considerations

Consult the official Bourns cross-reference guide for verified substitute part numbers. Do not assume functional equivalence with generic competitors without verifying electrical parameters and physical dimensions.
