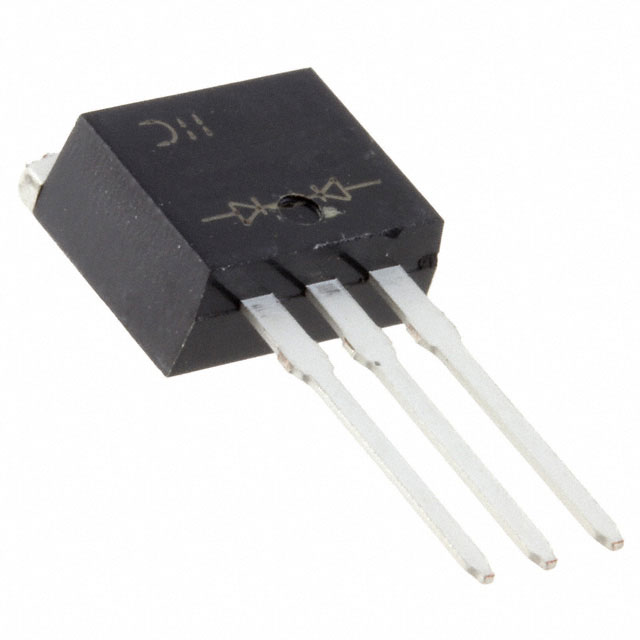

SDT30A100CTE

$1.17

Description：DIODE ARR SCHOTT 100V 15A TO-262
Series：-

SKU:864b26b54e60 Category: Diode Arrays Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SDT30A100CTE is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE ARR SCHOTT 100V 15A TO-262. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for SDT30A100CTE

Description：DIODE ARR SCHOTT 100V 15A TO-262
Series：-
Mfr：Diodes Incorporated
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：15A
Voltage - Forward (Vf) (Max) @ If：730 mV @ 15 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：80 µA @ 100 V
Operating Temperature - Junction：-55°C ~ 150°C
Mounting Type：Through Hole
Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA
Supplier Device Package：TO-262
Grade：-
Qualification：-

Diode Arrays datasheet and documents for SDT30A100CTE

SDT30A100CTE

Diode Arrays Overview

The SDT30A100CTE is a Schottky rectifier diode manufactured by Diodes Incorporated, housed in a TO-262-3 (I2Pak) through-hole package. It features a dual common cathode configuration with a maximum repetitive reverse voltage of 100 V and an average forward current of 30 A. The device exhibits a maximum forward voltage of 730 mV at rated current and supports a non-repetitive peak forward surge current of 200 A. Operating temperatures range from -55°C to +150°C junction temperature.

Diode Arrays Feature Summary

Dual common cathode configuration for efficient bridge or center-tapped applications
Low forward voltage drop characteristics to minimize conduction losses
Fast recovery time associated with Schottky technology
Robust thermal performance suitable for high-current environments

Diode Arrays Applications

DC-DC converter output rectification
Free-wheeling diodes in inductive load circuits
Power supply input rectification stages
Battery charging circuit protection

Diode Arrays Procurement Notes

Verify the specific package variant against design requirements, as the SDT30A100CTE utilizes the TO-262-3 form factor which differs from standard TO-220 dimensions. Confirm lead length specifications if board space constraints are critical. Ensure compatibility with existing thermal management solutions designed for this package style. Cross-reference datasheet electrical limits with system stress conditions prior to finalizing component selection.

Diode Arrays Selection Notes

Select this component when a dual common cathode topology is required within a TO-262 footprint. The 100 V rating suits low-voltage DC systems. Compare forward voltage and thermal resistance against alternatives like the SDT30A100CTFP if surface mount or different through-hole packages are preferred. Evaluate surge current capabilities against transient load profiles to ensure adequate safety margins during startup or fault conditions.

Diode Arrays Part Context

This part belongs to the SDT series of Trench Schottky Rectifiers from Diodes Incorporated. The series emphasizes low power loss and high efficiency. The SDT30A100CTE specifically addresses applications needing dual diode integration in a single package, reducing board space compared to discrete single diodes. It complements other variants in the family offering different current ratings or packaging options.
