SE2600S-R

Overview

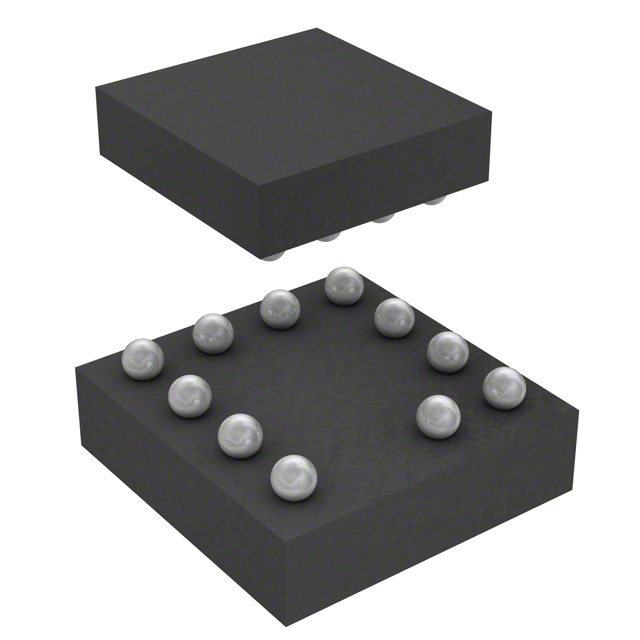

The SE2600S-R is a Skyworks Solutions RF front-end module designed for 2.4 GHz wireless applications, specifically supporting the 802.11b/g/n standards. It integrates a Low Noise Amplifier (LNA) and switch functionality within an 11-pin WLCSP package measuring 1.07x1.05 mm. The component delivers a gain of 12 dB with a noise figure of 1.8 dB. Operating at a supply voltage of 3.3 V, it utilizes Silicon Germanium (SiGe) technology to provide high-performance signal processing in space-constrained designs.

Feature Summary

• Integrates LNA and switch functions for simplified circuit design
• Optimized for 2.4 GHz 802.11b/g/n wireless protocols
• Utilizes compact 11-pin WLCSP packaging

Applications

• Wireless LAN modules
• Bluetooth Smart devices
• Zigbee IoT nodes

Procurement Notes

Verify component authenticity through official Skyworks channels or authorized distributors. Confirm RoHS compliance status via current datasheets. Note that this specific part number may be classified as obsolete; validate availability and lifecycle status before finalizing procurement plans to ensure long-term supply chain stability.

Selection Notes

Select the SE2600S-R for designs requiring integrated amplification and switching in minimal footprint applications. Its SiGe technology ensures reliable performance across standard operating temperatures. Ensure PCB layout accommodates the 11-WLCSP dimensions and thermal requirements for optimal signal integrity in 2.4 GHz environments.

Part Context

This component belongs to Skyworks' portfolio of RF front-end solutions targeting IoT and wireless connectivity. It complements other 2.4 GHz modules by providing essential signal conditioning. The integration of LNA and switch capabilities reduces external component count, aligning with industry trends toward miniaturization in consumer electronics and industrial sensors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
