SE2601T-R

Overview

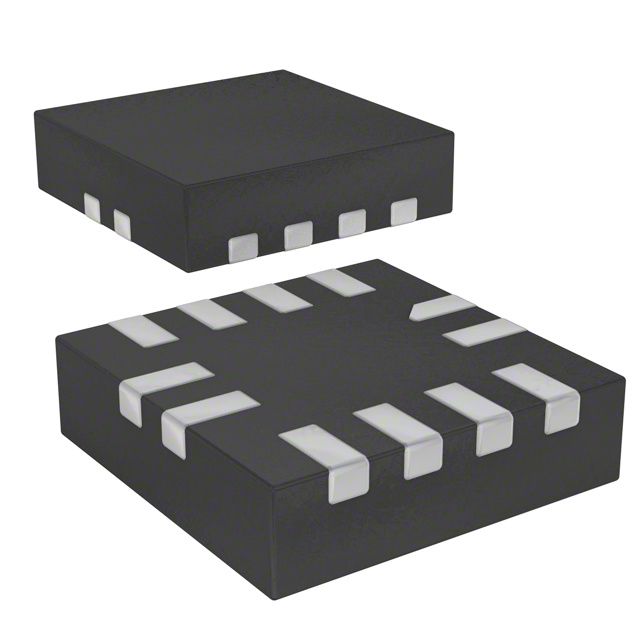

The SE2601T-R is a silicon-based RF front-end module manufactured by Skyworks Solutions, Inc., designed for 2.4 GHz wireless applications. It integrates a Low Noise Amplifier (LNA) and an SP3T switch within a 12-lead QFN package. The device operates at a supply voltage of 3.3 V with a current consumption of 10 mA. Key electrical parameters include a gain of 12 dB and a noise figure of 1.8 dB. It supports surface mount installation and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Integrates LNA and SP3T switch functionality in a single compact package
• Optimized for 2.4 GHz ISM band wireless connectivity standards
• Utilizes silicon technology for reliable signal amplification and routing

Applications

• 802.11b/g/n Wi-Fi modules
• Bluetooth low energy transceivers
• Zigbee and other 2.4 GHz IoT devices

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to obsolete status. Confirm RoHS compliance details via official documentation. Ensure the specific suffix matches required packaging formats such as cut tape or reel. Cross-reference datasheet revisions to guarantee compatibility with existing design specifications before integration.

Selection Notes

Select this component for designs requiring integrated signal conditioning and switching at 2.4 GHz. Consider the 12-QFN footprint for space-constrained PCB layouts. Evaluate the 1.8 dB noise figure against system sensitivity requirements. Verify thermal performance within the specified operating temperature range for the target application environment.

Part Context

The SE2601T-R belongs to Skyworks' portfolio of RF front-end solutions targeting short-range wireless communications. It complements other components in the series by providing combined amplification and switching capabilities. The part is categorized under Wireless & RF Integrated Circuits, specifically serving the SiGe technology segment for cost-effective high-performance modules.

Replacement Considerations

The product status is listed as Obsolete. No public confirmed substitute part numbers are available in the provided data. Designers should consult Skyworks Solutions directly for end-of-life management strategies or alternative component recommendations.
