Product Detailed Parameters
- Description：LINE FILTER 250VAC 50A CHASS MNT
- Series：SE
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：50 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, cURus, SEMKO
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (1/4-20)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

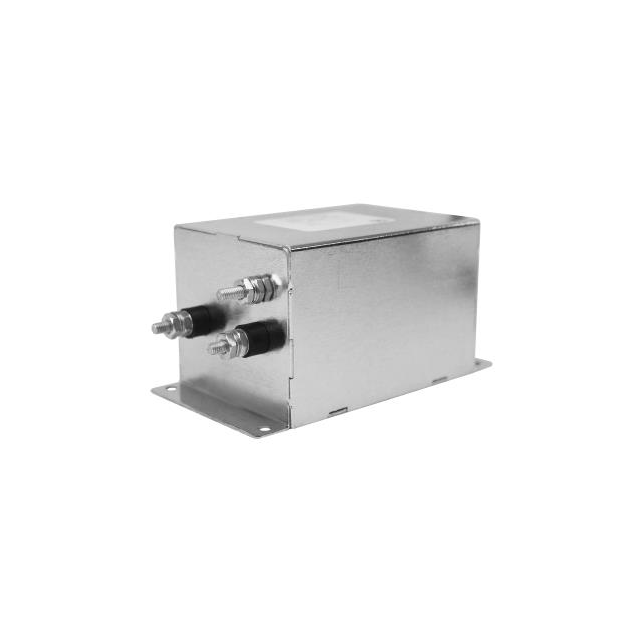

The Astrodyne TDI SE50 F is a single-phase EMC/EMI line filter designed for power line noise suppression. It features a two-stage filtering architecture to ensure optimal electromagnetic interference reduction. The unit supports an operating frequency of 50 Hz and 60 Hz. Electrical ratings include a voltage rating of 250 VAC and a current rating of 50 A. The device utilizes bolt-in termination style with threaded posts (1/4-20) for secure connection.
Feature Summary
- Two-stage EMI/EMC filtering architecture
- High-performance electromagnetic interference suppression
- Bolt-in termination with threaded posts
Applications
- Semiconductor capital equipment power solutions
- Medical power supply systems
- General industrial power line filtering
Procurement Notes
Verify the specific part number suffix against official Astrodyne TDI documentation to confirm exact electrical characteristics and compliance certifications such as UL, CSA, or LR. Ensure the mounting configuration matches the chassis requirements. Confirm that the 50 A current rating and 250 VAC voltage rating align with the system design specifications before procurement.
Selection Notes
Select this component when high-current single-phase applications require robust two-stage noise attenuation. The bolt-in termination style is suitable for chassis-mounted installations where secure mechanical connections are critical. Consider the physical dimensions and terminal spacing to ensure compatibility with existing panel layouts and busbar configurations.
Part Context
Astrodyne TDI specializes in engineered power solutions and EMI filters for demanding environments. The SE50 F belongs to their line filter portfolio, targeting sectors like medical and semiconductor equipment where reliability and strict noise suppression are mandatory. The product is distributed through authorized electronics channels.
Replacement Considerations
Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the two-stage performance or 50 A rating. Verify terminal type and mounting style compatibility before considering alternative models.
