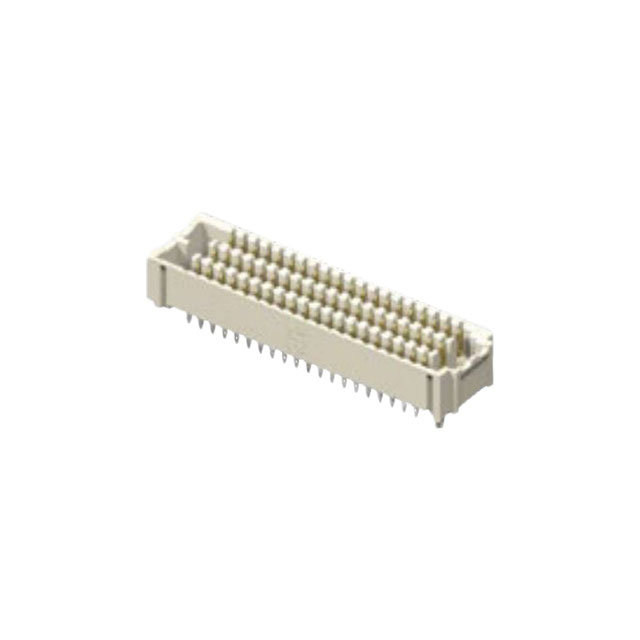

Arrays, Edge Type, Mezzanine (Board To Board) SEAFP-30-05.0-L-04 product image

SEAFP-30-05.0-L-04

$11.66

Description：CONN HD ARRAY F 120POS PRESS-FIT
Series：SEARAY™ SEAFP
Mfr：Samtec Inc.
Package：Tray,Tray

SKU:9b1bec83d3c5 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SEAFP-30-05.0-L-04 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HD ARRAY F 120POS PRESS-FIT. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for SEAFP-30-05.0-L-04

Description：CONN HD ARRAY F 120POS PRESS-FIT
Series：SEARAY™ SEAFP
Mfr：Samtec Inc.
Package：Tray,Tray
Connector Type：High Density Array, Female
Number of Positions：120
Pitch：0.050" (1.27mm)
Number of Rows：4
Mounting Type：Through Hole
Features：-
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Mated Stacking Heights：7mm
Height Above Board：0.197" (5.00mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for SEAFP-30-05.0-L-04

SEAFP-30-05.0-L-04
