SET23A36L02

SET23A36L02 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists YAGEO. Its product description is TVS DIODE 36VWM 76.8VC SOT23. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SET23A36L02

• Description：TVS DIODE 36VWM 76.8VC SOT23
• Series：SET23AXXL02
• Mfr：YAGEO
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：36V (Max)
• Voltage - Breakdown (Min)：40V
• Voltage - Clamping (Max) @ Ipp：76.8V
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：70pF @ 1MHz
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

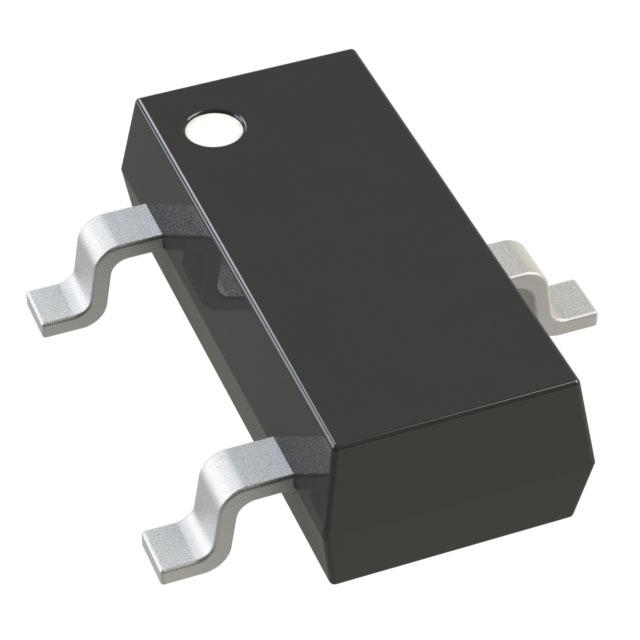

• Package / Case：TO-236-3, SC-59, SOT-23-3
• Supplier Device Package：SOT-23
• Unidirectional Channels：2
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for SET23A36L02
