SF1188C

Overview

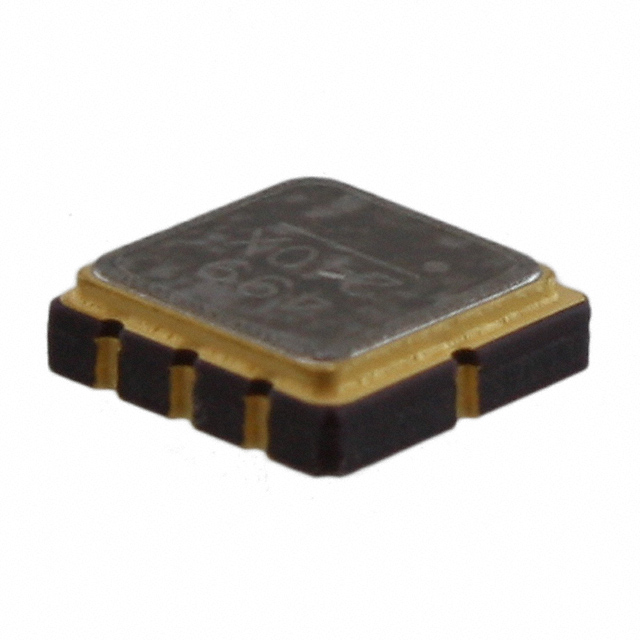

The Murata SF1188C is a Surface Acoustic Wave (SAW) filter designed for signal conditioning in wireless access applications. It operates at a center frequency of 465.0 MHz with a bandwidth of 4 MHz. The device features an insertion loss of 2 dB and utilizes an 8-SMD, no-lead package measuring 5.00 mm x 5.00 mm.

Feature Summary

• Surface Acoustic Wave technology for precise RF filtering
• Optimized for wireless access signal conditioning
• Compact surface-mount design

Applications

• Wireless access systems
• RF signal conditioning circuits
• Communication equipment requiring 465 MHz filtering

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Murata Electronics or authorized distributors before procurement. Confirm that the 8-SMD no-lead package dimensions align with your PCB footprint requirements. Ensure the component meets all environmental operating specifications for your intended application environment.

Selection Notes

Select this component when a narrow 4 MHz bandwidth is required at 465 MHz. The low insertion loss supports efficient signal transmission. Consider the physical size constraints as the package measures 5.00 mm by 5.00 mm. Verify compatibility with existing RF circuit designs requiring SAW filter characteristics.

Part Context

This part belongs to Murata's SAW filter series, specifically engineered for radio frequency applications. It serves as a passive component for frequency selection and interference rejection in communication hardware. The device complements other RF components in signal chain architectures.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Murata Electronics for current alternative recommendations if discontinuation or supply issues arise.
