SF11S5-1573.000-F66IL2.8AK

Overview

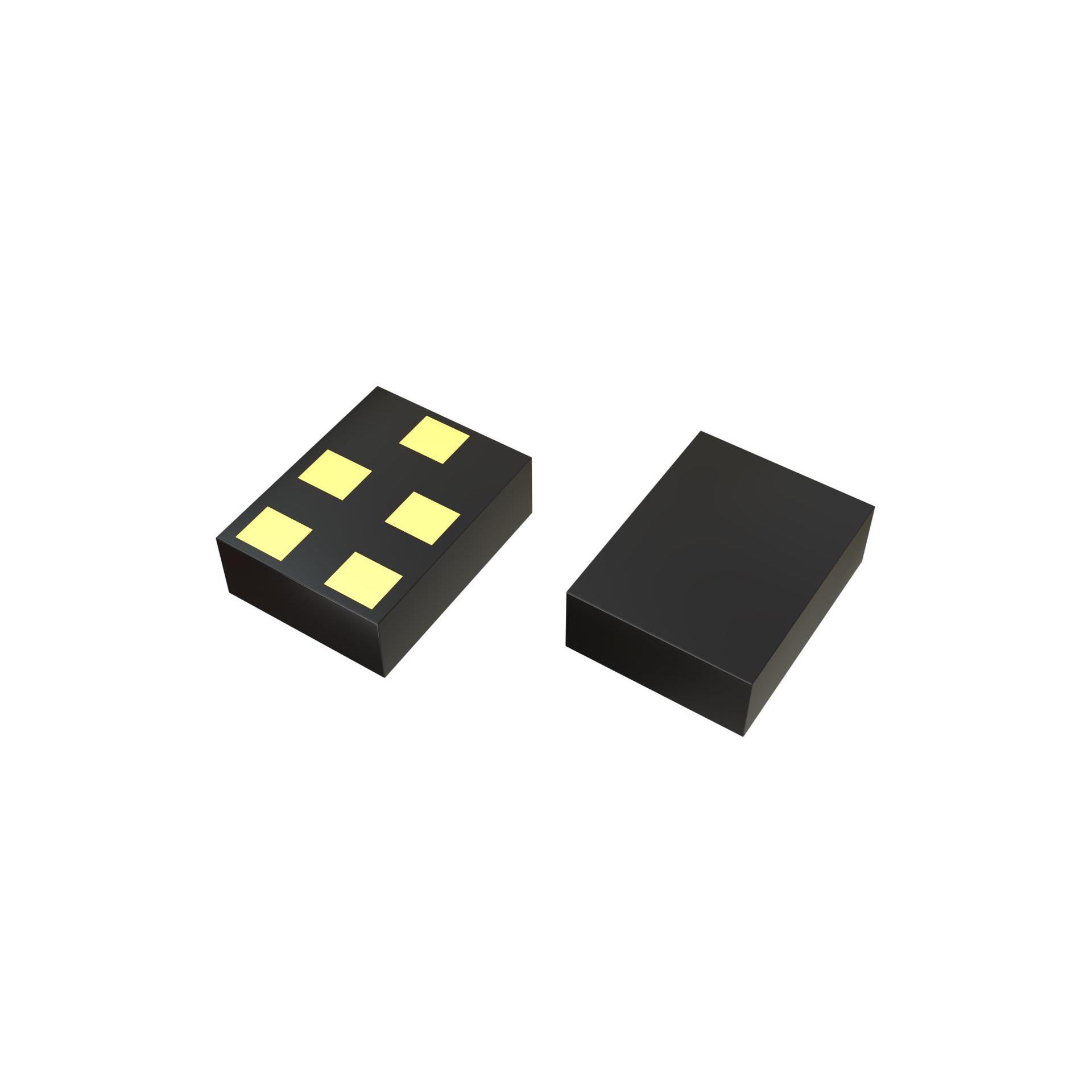

The SF11S5-1573.000-F66IL2.8AK is a Surface Acoustic Wave (SAW) filter manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It belongs to the SF11S5 series and operates at a center frequency of 1.573 GHz. The component is currently in active production status. It is supplied in Tape & Reel (TR) packaging, facilitating automated assembly processes for electronic manufacturing.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for high-frequency operation at 1.573 GHz
• Available in Tape & Reel packaging for surface mount applications

Applications

• GPS L1 band signal processing
• GNSS receiver front-end filtering
• Satellite navigation system components

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct frequency and package specifications. Confirm that the supplier provides genuine components from Suzhou Hangjing Elec&Tech Co.,Ltd. Check for any specific handling requirements associated with SAW devices during storage and assembly.

Selection Notes

Select this component when a SAW filter centered at 1.573 GHz is required for GNSS applications. Ensure the design accommodates the Tape & Reel packaging format. Verify compatibility with the target PCB footprint and reflow soldering profile specified by the manufacturer for the SF11S5 series.

Part Context

This part is part of the SF11S5 series from Suzhou Hangjing Elec&Tech Co.,Ltd, a company specializing in quartz frequency control units founded in 2014. The manufacturer focuses on research, development, and production of such components. This specific model targets the 1.573 GHz range, commonly associated with GPS L1 signals.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer's official documentation or authorized distributors for approved equivalents or cross-reference information.
