SF16-0953M4UU01

Overview

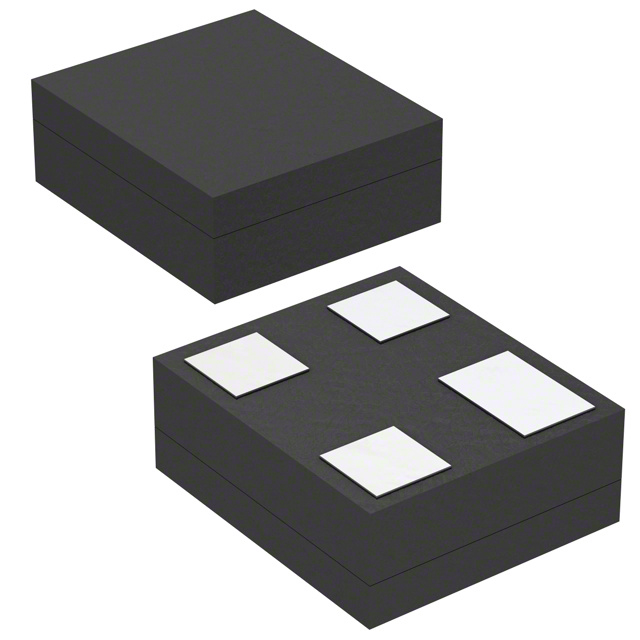

The SF16-0953M4UU01 is a Surface Mount Device (SMD) Surface Acoustic Wave (SAW) filter manufactured by KYOCERA AVX. It operates at a center frequency of 953 MHz with a bandwidth of 6 MHz. The component features an insertion loss of 2.5 dB and utilizes a 4-terminal SMD package configuration.

Feature Summary

• Surface Acoustic Wave technology for RF signal filtering
• Compact surface-mount device form factor

Applications

• General RF applications requiring SAW filtering

Procurement Notes

Verify current product status as the component is listed as obsolete in available distributor records. Confirm availability through official manufacturer channels or authorized distributors, as standard stock may be limited or discontinued. Ensure compatibility with existing designs before procurement due to end-of-life status.

Selection Notes

Select this component for applications requiring a 953 MHz center frequency with a narrow 6 MHz bandwidth. Consider the 2.5 dB insertion loss specification when designing RF signal paths. Evaluate the 4-terminal SMD package dimensions against board space constraints during the layout phase.

Part Context

This part belongs to the SF series of SAW filters from KYOCERA AVX. These components are designed for radio frequency applications, offering specific frequency selectivity through surface acoustic wave propagation mechanisms within a small surface-mount footprint suitable for modern electronic assemblies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, alternative sourcing should focus on verifying remaining inventory or consulting the manufacturer for recommended replacements.
