SF17401

Overview

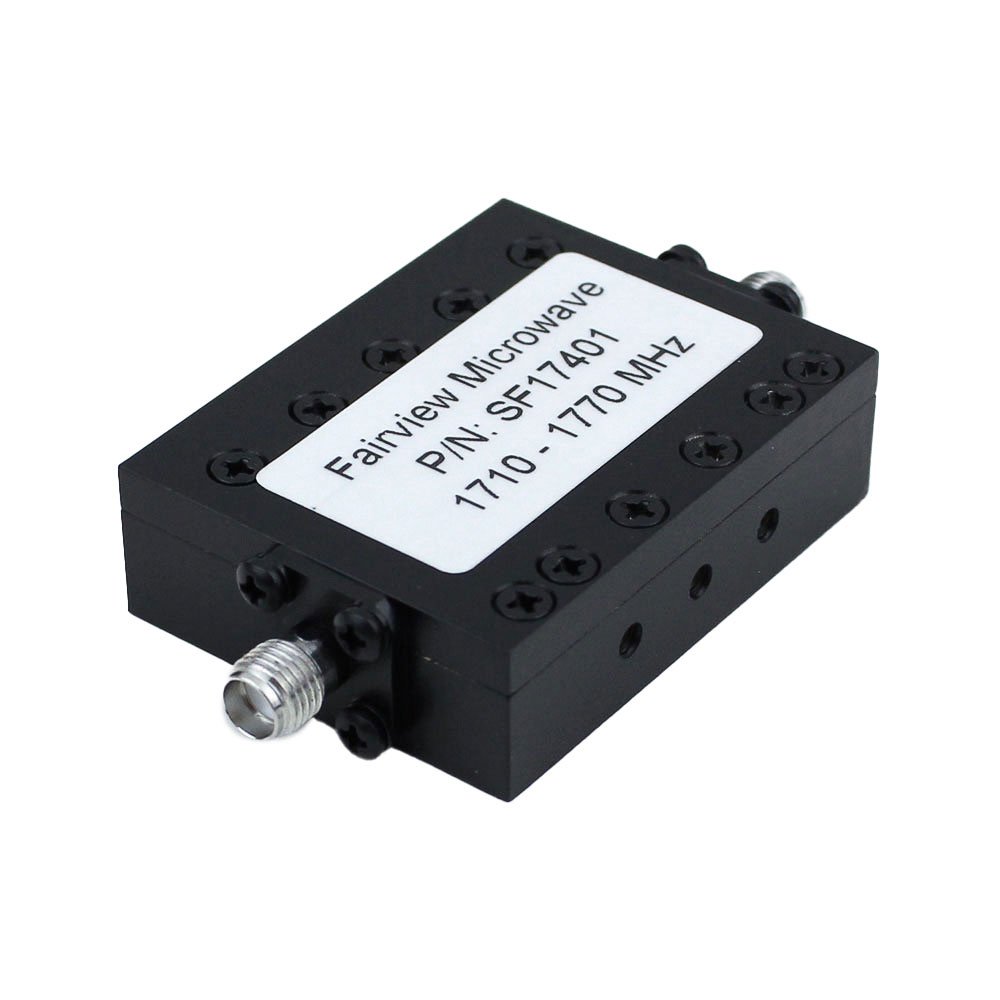

The SF17401 is a passive bandpass cavity filter manufactured by Fairview Microwave. It operates within a frequency range of 1.71 GHz to 1.77 GHz, with a center frequency of 1740 MHz and a bandwidth of 60 MHz. The component features SMA female connectors and exhibits an insertion loss of 1.5 dB. Designed for robust performance, it is supplied in a module package equipped with SMA connectors.

Feature Summary

• Passive bandpass cavity filter design
• SMA female connector interface
• Module packaging configuration

Applications

• RF signal filtering applications
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet revision and technical specifications directly from Fairview Microwave before procurement. Confirm that the SMA female connector type and module packaging align with your system requirements. Ensure the operating frequency range of 1.71 GHz to 1.77 GHz matches your application needs. Check for any updates to the product documentation regarding dimensional or electrical changes.

Selection Notes

Select this component when a fixed-frequency bandpass filter is required for the 1.71-1.77 GHz range. The SMA female connectors facilitate easy integration into standard RF setups. Consider the 1.5 dB insertion loss impact on system sensitivity. Verify compatibility with existing SMA interfaces in the circuit design.

Part Context

The SF17401 belongs to Fairview Microwave's RF filters category, specifically designed as a bandpass cavity filter. It serves as a specialized component for filtering signals within a narrow frequency band around 1740 MHz. This part is distinct from other RF components like amplifiers or cables due to its passive filtering function.

FAQ

What is the center frequency of the SF17401?

The center frequency (Fc) of the SF17401 is 1740 MHz.

What type of connectors does the SF17401 use?

The SF17401 uses SMA female connectors.
