SF2098H

Overview

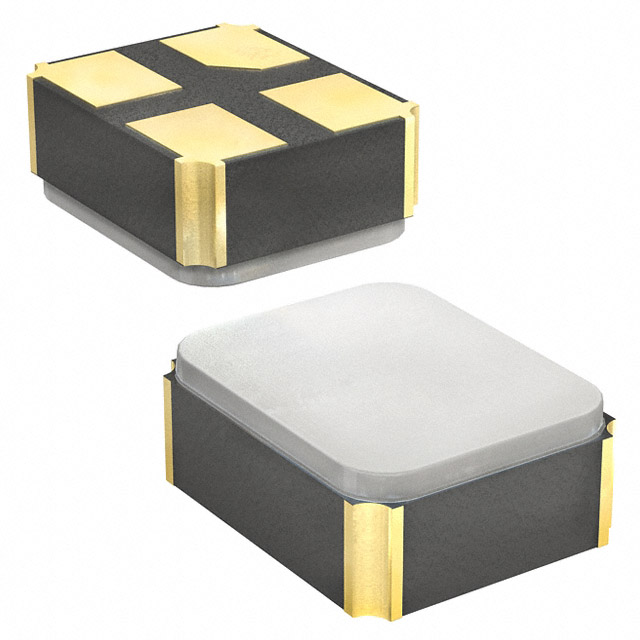

The Murata SF2098H is a Surface Acoustic Wave (SAW) filter designed for general RF applications. It operates at a center frequency of 915MHz with a bandwidth of 26MHz and an insertion loss of 2dB. The component utilizes a 4-SMD, no-lead package measuring 2.00mm x 1.60mm x 0.90mm. It is RoHS3 compliant and classified under ECCN EAR99.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for general-purpose RF applications
• Low insertion loss characteristics

Applications

• General RF systems

Procurement Notes

Verify the current lifecycle status before procurement as the SF2098H is listed as obsolete or not recommended for new designs in multiple distributor records. Confirm availability through authorized channels and check for valid datasheets to ensure technical compliance with specific design requirements.

Selection Notes

Select this component for applications requiring a 915MHz SAW filter with a 26MHz bandwidth. Ensure the design accommodates the 4-SMD no-lead footprint dimensions of 2.00mm by 1.60mm. Verify that the 2dB insertion loss meets system sensitivity requirements.

Part Context

The SF2098H belongs to the SF20 series of SAW filters manufactured by Murata Electronics. These components are engineered for compact RF signal processing tasks. The part is housed in a small outline package suitable for surface mount assembly on printed circuit boards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, alternative components must be identified based on matching electrical specifications and physical footprint constraints.
