SF2349D

Overview

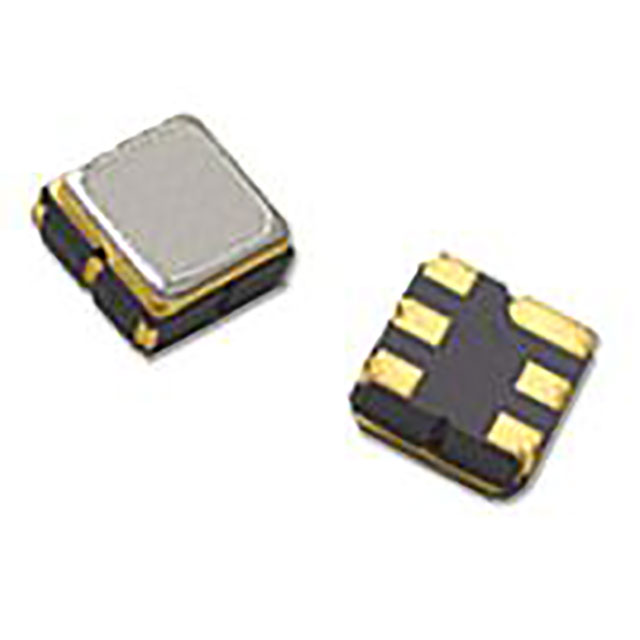

The SF2349D is a surface acoustic wave (SAW) bandpass filter manufactured by RFMi. It operates at a center frequency of 912.1 MHz with a bandwidth of 10.2 MHz, covering a range from 907 MHz to 917.2 MHz. The device features a 5 V voltage rating and an insertion loss of 2.95 dB. It utilizes a 6-SMD, no-lead package with dimensions of 3.80mm x 3.80mm x 1.70mm. Designed for board mounting, it supports an operating temperature range from -45°C to +85°C.

Feature Summary

• Surface acoustic wave technology for precise signal conditioning
• General-purpose RF filtering capability
• Compact SMD package design

Applications

• Wireless communication systems
• Internet-connected OEM devices
• RF signal processing modules

Procurement Notes

Verify the manufacturer designation as RFMi, which is an Akoustis brand. Confirm the specific package type is 6-SMD, no-lead, and matches the required footprint dimensions of 3.80mm x 3.80mm. Ensure the operating temperature range meets the application requirements of -45°C to +85°C. Cross-reference the center frequency of 912.1 MHz against system specifications.

Selection Notes

Select this component when a SAW filter with a 912.1 MHz center frequency is required. The 10.2 MHz bandwidth suits applications needing moderate selectivity. The 5 V rating and low insertion loss are suitable for general-purpose RF stages. Consider the SMD package size for PCB layout constraints.

Part Context

This part belongs to the RFMi SAW filter family, designed for digital and wireless applications. RFMi provides RF components based on SAW, Xtal, and Ceramic technologies. These filters are intended for use in transmitters and signal conditioning circuits within connected devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
